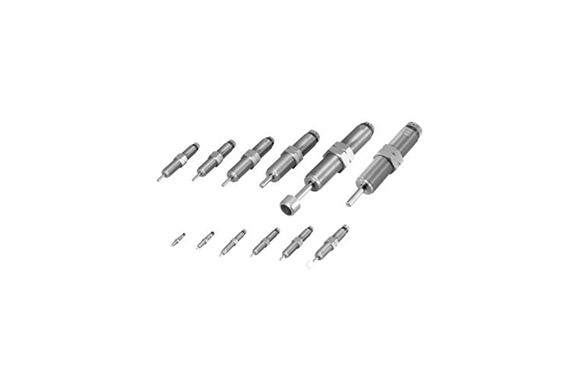

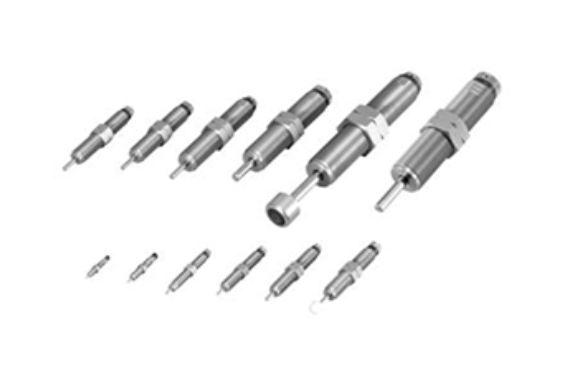

Koganei KSHP Series Linear Orifice Shock Absorber

Manufacturer: KOGANEI CORPORATION
Model: KSHP Series

Features

Discover the industry’s first linear orifice type featuring integrated adjustment capabilities. You can easily perform fine adjustments to perfectly suit your specific impact speed and load requirements. Furthermore, this durable unit supports a long service life with a maximum of more than 3 million operations. Because it complies with H1 standards for food equipment specifications, you can safely use it in sensitive manufacturing environments.

Specifications

Model (in inches)	KSHP6 × 4 (KSHP6 × 4-F11)	KSHP8 × 6, KSHP8 × 6-11 (KSHP8 × 6-F11)
Maximum absorption capacity J(in.lbs)	0.25 (2.213)	0.75 (6.638)
Absorption stroke mm(in.)	4 (0.157)	6 (0.236)
Impact speed range m/s(ft/s)	0.1 to 1 (0.33 to 3.28)
Maximum operating cycle cycle/min	50
Maximum absorption capacity per unit of time J/min (in.lbs/min)	7.5 (66.4)	22.5 (199.3)
Spring return force (N)	2.6	2.9
Deflection angle	1° or less
Operating temperature range °C (°F)	0 to 60 (32 to 140)

Model (in inches)	KSHP10 × 8 (KSHP10 × 8-F11, KSHP11 × 8-F11)	KSHP12 × 10 (KSHP12 × 10-F11)	KSHP14 × 12 (KSHP14 × 12-F11)
Maximum absorption capacity J(in.lbs)	2 (17.701)	4 (35.403)	5 (44.254)
Absorption stroke mm(in.)	8 (0.315)	10 (0.394)	12 (0.472)
Impact speed range m/s(ft/s)	0.1 to 2 (0.33 to 6.56)
Maximum operating cycle cycle/min	50
Maximum absorption capacity per unit of time J/min (in.lbs/min)	60 (531.4)	120 (1062.7)	150 (1328.4)
Spring return force (N)	6.5	9.6	9.0
Deflection angle	1° or less
Operating temperature range °C (°F)	0 to 60 (32 to 140)

Model (in inches)	KSHP16 × 15	KSHP18 × 20 (KSHP18 × 20-F11)	KSHP20 × 22
Maximum absorption capacity J(in.lbs)	10	15 (132.8)	20
Absorption stroke mm(in.)	15	20 (0.787)	22
Impact speed range m/s(ft/s)	0.1 to 2 (0.33 to 6.56)
Maximum operating cycle cycle/min	40	40	30
Maximum absorption capacity per unit of time J/min (in.lbs/min)	240	360 (3188.2)	360
Spring return force (N)	20.5	23.0	18.4
Deflection angle	3° or less
Operating temperature range °C (°F)	0 to 60 (32 to 140)

Model (in inches)	KSHP25 × 25 (KSHP25 × 25-F11)	KSHP30 × 30 (KSHP30 × 30-F11)	KSHP36 × 50 (KSHP36 × 50-F11)
Maximum absorption capacity J(in.lbs)	40 (354.0)	110 (973.6)	200 (1770)
Absorption stroke mm(in.)	25 (0.984)	30 (1.181)	50 (1.969)
Impact speed range m/s(ft/s)	0.1 to 2 (0.33 to 6.56)		0.1 to 3 (0.33 to 9.84)
Maximum operating cycle cycle/min	30	20	15
Maximum absorption capacity per unit of time J/min (in.lbs/min)	720 (6376.3)	1320 (11690)	1800 (15940.8)
Spring return force (N)	32.3	42.3	65.8
Deflection angle	3° or less
Operating temperature range °C (°F)	0 to 60 (32 to 140)
Model (in inches)	KSHP42 × 50 (KSHP42 × 50-F11)
Maximum absorption capacity J(in.lbs)	300 (2655)
Absorption stroke mm(in.)	50 (1.969)
Impact speed range m/s(ft/s)	0.1 to 3 (0.33 to 9.84)
Maximum operating cycle cycle/min	10
Maximum absorption capacity per unit of time J/min (in.lbs/min)	2000 (17712.0)
Spring return force (N)	64.2
Deflection angle	3° or less
Operating temperature range °C (°F)	0 to 60 (32 to 140)
