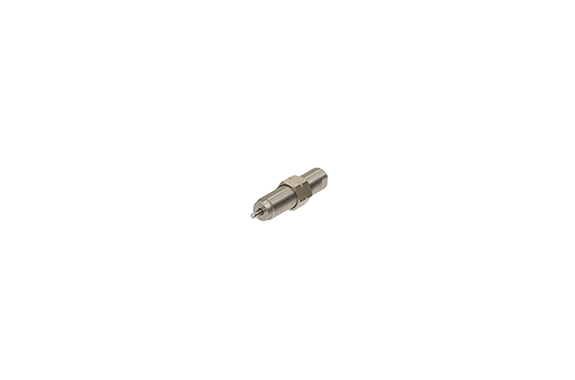

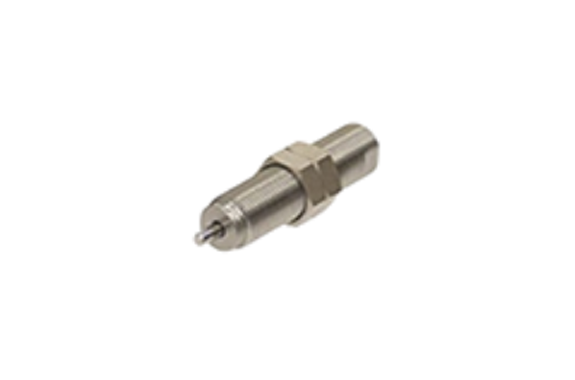

Koganei KSHW Series Linear Orifice Protective Shock Absorbers

Manufacturer: KOGANEI CORPORATION
Model: KSHW Series

Features

Enhance industrial reliability with high-durability pneumatic cylinders and precision shock absorbers designed to extend service life and reduce maintenance time. Our eco-friendly solutions minimize resource usage and waste generation, contributing directly to energy savings and reduced environmental impact. Featuring long-life cylinders with standard external dimensions for easy replacement, these units operate efficiently across wide speed and pressure ranges without required lubrication. Additionally, specialized KSHW shock absorbers ensure peak performance by absorbing heavy impacts in harsh environments containing cutting oil, water, or dust.

Specifications

Model	KSHW8×5-01,-11	KSHW8×5-02,12	KSHW10×6-01	KSHW10×6-02
Maximum absorption capacity J [ft·lbf]	1 [0.738]	0.8 [0.590]	1.5 [1.106]	1 [0.738]
Absorption stroke mm [in.]	5 [0.197]		6 [0.236]
Impact speed range m/s [ft/sec]	0.1 to 1.0 [0.328 to 3.280]
Maximum operating frequency cycle/min	60
Maximum absorption per unit of time J/min	20		30
Spring return force N [lbf]	9 [2.023]		11 [2.473]
Deflection angle	1° or less
Operating temperature range °C [°F]	0 to 60 [32 to 140]

KSHW Series Shock Absorber Technical Data

Model	KSHW12×6-01	KSHW12×6-02	KSHW14×8-01	KSHW14×8-02
Maximum absorption capacity J [ft·lbf]	3 [2.213]	2 [1.475]	5 [3.688]	4 [2.950]
Absorption stroke mm [in.]	6 [0.236]		8 [0.315]
Impact speed range m/s [ft/sec]	0.1 to 1.0 [0.328 to 3.280]
Maximum operating frequency cycle/min	60
Maximum absorption per unit of time J/min	45		60
Spring return force N [lbf]	10 [2.248]		13 [2.923]
Deflection angle	1° or less
Operating temperature range °C [°F]	0 to 60 [32 to 140]

Model	KSHW16×8-01	KSHW16×8-02	KSHW20×10-01	KSHW20×10-02
Maximum absorption capacity J [ft·lbf]	8 [5.901]	5 [3.688]	12 [8.851]	8 [5.901]
Absorption stroke mm [in.]	8 [0.315]		10 [0.394]
Impact speed range m/s [ft/sec]	0.1 to 1.0 [0.328 to 3.280]
Maximum operating frequency cycle/min	40
Maximum absorption per unit of time J/min	80		120
Spring return force N [lbf]	13 [2.923]		21.5 [4.833]
Deflection angle	1° or less
Operating temperature range °C [°F]	0 to 60 [32 to 140]
