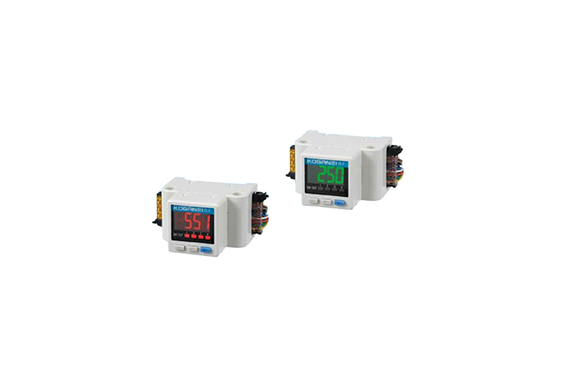

Koganei Linear Magnetic Sensor Controller Long Type

Manufacturer: KOGANEI CORPORATION

Features

The system converts the position of the actuator within the sensing range to numerical values. Specifically, the analog output (1 to 5 VDC) is standard equipment, allowing the detected position to be monitored directly from the controller. Moreover, the four-point switching output makes it possible to detect the position within the measured range.

In addition, the system is compatible with a wide range of Koganei actuators. This is possible because the sensor heads share the same shape as the ZE types and other similar 4 types.

Specifications

ZL2 Model
Power supply voltage	24 VDC ±10%
Consumption current	50 mA max. (Not including supply power to sensor.)
Sensor input supply power and voltage	5 VDC
Sensor input maximum input voltage	3.0 V
Switch output method	NPn open collector output, 5 points
Load voltage	30 VDC
Load current	50 mA max.
Switch output volume repeatability	±1% F.S. ±1 digit
Internal voltage drop	0.3 V max. (When Ic = 5 mA)
Response time	5 ms MAX.
Operation indicator light	Lights red when each switch output is on
Value display	1/1000 division display within effective measuring range (4 digits, 2-color display: red and green)
Analog output voltage range	DC1 to 5 V with effective measuring range, DC0.8V outside effective measuring range (1kΩ output impedance)
Analog output repeatability	±1% of F.S. (25°C±5°C [77°F±9°F])
Insulation resistance	100 MΩ min. (500 VDC megger, between case and lead wire terminal)
Withstand voltage	500 VAC (50/60 Hz) 1 minute (between case and lead wire terminal)
Shock resistance	294.2 m/s² [30 G] (non-repetitive)
Ambient temperature	0 to 50°C [32 to 122°F] (non-condensation, non-freezing)
Storage temperature range	-10 to 70°C [14 to 158°F] (non-condensation, non-freezing)
Mass	40 g [1.411 oz]

ZLS1 Model
Power supply voltage	5 VDC ±5%
Consumption current	20 mA max.
Mounting methods	Body embedded type (ZL1, ZL2L, ZL4 type (ZLL3) (Operation position can be changed by settings))
Operation indicator light	Red LED lights at optimal sensitivity position (Operation position can be changed by settings)
Lead wire	Heat-resistant, oil-resistant vinyl sheath instrumentation cable φ2.8 [0.110″] 6 core With 6P connectors
Insulation resistance	100 MΩ min. (500 VDC megger, between case and lead wire terminal)
Withstand voltage	500 VAC (50/60 Hz) 1 minute (between case and lead wire terminal)
Shock resistance	294.2 m/s² [30 G] (non-repetitive)
Vibration resistance	88.3 m/s² [9 G] (Double amplitude: 1.5 mm [0.059 in], 10~55 Hz)
Ambient temperature	0 to 50°C [32 to 122°F] (non-condensation, non-freezing)
Storage temperature range	-10 to 70°C [14 to 158°F] (non-condensation, non-freezing)
Mass	20 g [0.705 oz] (When 1L lead wire length is 1000 mm [39 in])
