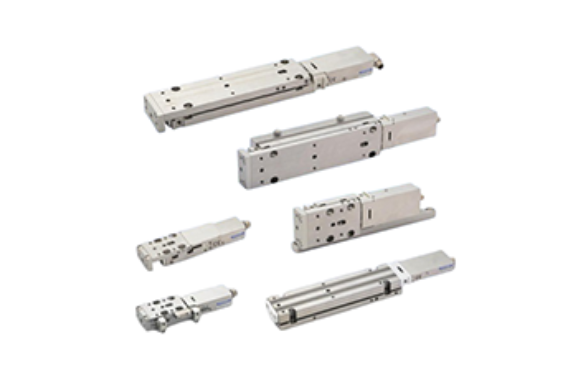

Koganei Low Profile Electric Slider

Manufacturer: KOGANEI CORPORATION

Features

Maximize your production efficiency with our industry-first low-profile, high-rigidity, and high-accuracy actuators. These compact, thin square form units feature a precision slide screw and linear guide for high-accuracy operation. Designed for simple operation between two points, the system allows for easy stroke, speed, acceleration/deceleration, and thrust level settings.

Safety is prioritized with a fall prevention function with a self-lock mechanism, while the built-in connector allows for immediate recovery from disconnections by replacing the relay cable. Our open loop control provides a lower cost alternative to linear motors, utilizing a low-speed mechanism for extremely quiet operation.

Key technical features include:

High-accuracy positioning using an external stopper with repeatability of $\pm$ 0.005.
Intermediate stops, speed control, and thrust settings for versatile motion.
Simple operation mode with just ON and OFF, similar to an air cylinder.
Step-out detection that automatically stops operation upon error.
RS232C interface with a high data rate of 38.4 kbps for efficient computer communication.
Mounting compatibility with Mini Guide Sliders.

These actuators are compatible with Point input type and CC-Link Remote I/O type controllers.

Specifications

Item \ Model		EW2G10□H / EW2G10□S		EW2G12□H / EW2G12□S		EW2G16□H / EW2G16□S
Motor size mm [in.]		φ10 [0.394]		φ12 [0.472]		φ16 [0.630]
Type		High-speed	High-torque	High-speed	High-torque	High-speed	High-torque
Lead mm [in.]		4 [0.157]	2 [0.079]	4 [0.157]	2 [0.079]	4 [0.157]	2 [0.079]
Motor		Brushless motor
Maximum thrust^{Note 1}	N [lbf]	10 [2.248]	20 [4.496]	20 [4.496]	40 [8.992]	30 [6.744]	60 [13.488]
Maximum payload (horizontal)^{Note 2}	kg [lb]	0.6 [1.323]	1 [2.205]	0.8 [1.764]	1.4 [3.087]	1.2 [2.646]	2 [4.410]
Maximum payload (vertical)^{Note 2}	kg [lb]	0.3 [0.662]	0.5 [1.103]	0.4 [0.882]	0.7 [1.544]	0.6 [1.323]	1 [2.205]
Maximum speed (positioning mode)	mm/s [in/sec]	100 [3.937]	50 [1.969]	100 [3.937]	50 [1.969]	100 [3.937]	50 [1.969]
Maximum speed (pushing mode)	mm/s [in/sec]	20 [0.787]	10 [0.394]	20 [0.787]	10 [0.394]	20 [0.787]	10 [0.394]
Minimum speed	mm/s [in/sec]	10 [0.394]	5 [0.197]	10 [0.394]	5 [0.197]	10 [0.394]	5 [0.197]
Repeatability of positioning accuracy^{Note 6}	mm [in.]	±0.08 [0.003]	±0.06 [0.002]	±0.08 [0.003]	±0.06 [0.002]	±0.08 [0.003]	±0.06 [0.002]
Operating temperature range	°C [°F]	5 to 40 [41 to 104]
Static rated moment^{Note 5}	Mp N·m	2.8 [24.783]		14.5 [128.3]		20.7 [183.2]
	My N·m	3.4 [30.093]		17.2 [152.2]		24.7 [218.6]
	Mr N·m	3.8 [33.634]		25.6 [226.6]		43.3 [383.2]
Applicable controller		EW2C-H-NP, EW2C-H-PN, EW2C-H-CC, EW2C-H-CCD
