KOGANEI CORPORATION

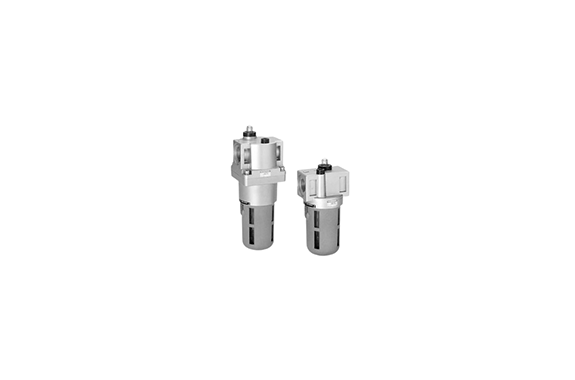

Koganei Lubricators LN650, LN651, LN900, LN901, LN 902
Manufacturer: KOGANEI CORPORATION
Features
The Large FRL Series lubricator ensures a constant and stable oil supply, even when flow volume and pressure fluctuate. With its dial and scale, you can easily adjust the drip rate for precise oil delivery. This system guarantees reliable oil supply, even in long piping systems, maintaining performance across varying conditions.
Specifications
| Item | Series | 650 series | 900 series |
|---|---|---|---|
| Model | Type | LN650 (Standard), LN651 (Micro lubricator) | LN900 (Standard), LN901 (Micro lubricator), LN902 (Machine lubricator) |
| Media | Air or non-corrosive gas | ||
| Port size | Rc | 3/4, 1 | 3/4, 1 |
| Max. operating pressure | MPa [psi] | 0.97 [141] | 0.3 [44] |
| Proof pressure | MPa [psi] | 1.47 [213] | |
| Operating temperature range | °C [°F] | 5～60 [41～140] | |
| Oil capacity | cc [in³] | 160 [9.8] | |
| Recommended lubrication | Turbine oil Class 1 [ISO VG32] | ||
| Lubrication method | Total lubrication | Selective lubrication | |
| Min. flow rate for dripping oil | ℓ/min [ft³/min] (ANR) | 20 [0.71] | 70 [2.47] |
| Mass | kg [lb.] | 0.64 [1.4] | 1.3 [2.9] (LN902: 1.4 [3.1]) |
| Materials | Body | Aluminum die-casting | Aluminum die-casting |
| Bowl | Polycarbonate | Polycarbonate | |
| Damper | Urethane rubber | Urethane rubber | |
| Standard attachments | Bowl guard | Bowl guard | |
