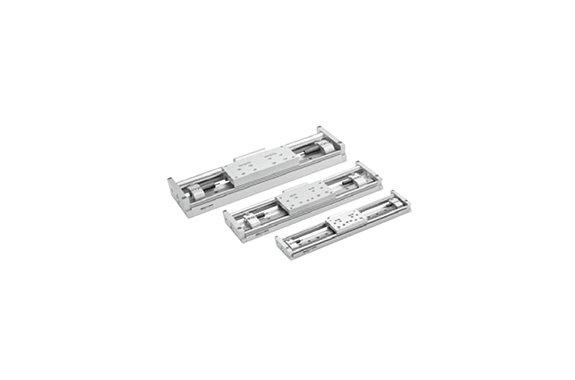

Koganei Magnet Type Rodless Cylinders MRS Series
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Bore size mm [in.] | |||||
|---|---|---|---|---|---|---|
| 10 [0.394] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] | 40 [1.575] | |
| Operation type | Double acting type | |||||
| Media | Air | |||||
| Operating pressure range MPa [psi.] | 0.25～0.7 [36～102] | 0.2～0.7 [29～102] | ||||
| Proof pressure MPa [psi.] | 1.05 [152] | |||||
| Operating temperature range °C [°F] | 0～60 [32～140] | |||||
| Operating speed range mm/s [in./sec.] | 150～1000 [5.9～39.4] (2000 [78.7]) | 100～1000 [3.9～39.4] (2000 [78.7]) | ||||
| Cushion | Shock absorber (Standard equipment for both ends) | |||||
| Lubrication Cylinder portion | Not required (If lubrication is required, use Turbine Oil Class 1 [ISO VG32] or equivalent, or fluorine-contained lithium soap-based grease.) | |||||
| Lubrication Guide portion | Required (Lithium soap-based grease) | |||||
| Repeatability mm [in.] | ±0.05 [±0.002] | |||||
| Parallelism mm [in.] | 0.3 [0.012] | |||||
| Stroke adjusting range mm [in.] | Adjustable over the entire stroke (Specified stroke +10 mm [0.394]) | |||||
| Maximum load capacity N [lbf.] | 130 [29.2] | 300 [67.4] | 600 [135] | |||
| Port size | M5×0.8 | Rc1/8 | Rc1/4 | |||
