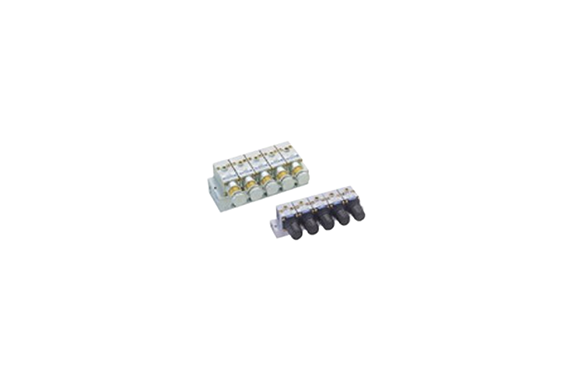

Koganei Manifold Regulators
Manufacturer: KOGANEI CORPORATION
Features
The Manifold Regulator simplifies the adjustment and confirmation of supply pressure, offering convenient control from a single location. In addition, the new high-relief type enhances the functionality of the R100 series, providing more options to meet different needs. Moreover, P port piping is available in two configurations: a port collective type and an individual station type, allowing selection based on the flow rate and primary pressure conditions. Furthermore, optional features like the built-in check mechanism, compact pressure gauge, and non-ion specification offer enhanced flexibility to suit various applications.
Specifications
| Item | Model | MR050 (Standard type) | MR100 | MR052 (Built-in check mechanism) | MR102 | HR100 (High-relief type) |
|---|---|---|---|---|---|---|
| Media | Air | |||||
| Operation method | Piston type | Diaphragm type | Piston type | |||
| Port size | Rc | 1/8 | 1/8, 1/4 | 1/8 | ||
| Pressure setting range | MPa [psi] | 0.05～0.5 [7～73] | 0.05～0.7 [7～102] | 0.05～0.7 [7～102] | ||
| Relief starting pressure | MPa [psi] | 0.7 [102] | 0.9 [131] | Setting pressure + 0.03 [4.35] | ||
| Maximum operating pressure | MPa [psi] | 0.7 [102] | 0.9 [131] | 0.93 [135] | ||
| Proof pressure | MPa [psi] | 1.03 [149] | 1.32 [191] | 1.47 [213] | ||
| Operating temperature range (atmosphere and media) | °C [°F] | 5～60 [41～140] | ||||
| Options | Pressure gauge: With G1-20A (bottom piping) or G1-20D (back piping) | |||||
