KOGANEI CORPORATION

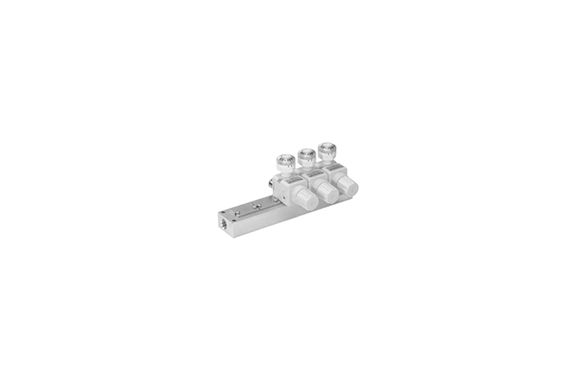

Koganei Manifold Regulators FR Series
Manufacturer: KOGANEI CORPORATION
Features
- Compact, lightweight manifold regulator.
Specifications
| Item | Model | Standard MRN100 / MRN110 | Low pressure MRN101 / MRN111 |
|---|---|---|---|
| Media | Air | ||
| Port size | IN: Rc1/8 or NPT1/8 OUT: φ4mm (0.157in), φ6mm (0.236in), 1/8in or 1/4in | ||
| Pressure setting range | MPa [psi] | 0.05～0.7 [7～102] | 0.05～0.25 [7～36] |
| Maximum operating pressure | MPa [psi] | 1 [145] | |
| Proof pressure | MPa [psi] | 1.5 [218] | |
| Operating temperature range (atmosphere and media) | °C [°F] | 5～50 [41～122] | |
| Lubrication | Prohibited | ||
| Mass (single unit) | Body | 33 g [1.16] | 33 g [1.16] |
| Pressure gauge | 15 g [0.53] | 15 g [0.53] | |
| Manifold body material | Aluminum alloy | ||
