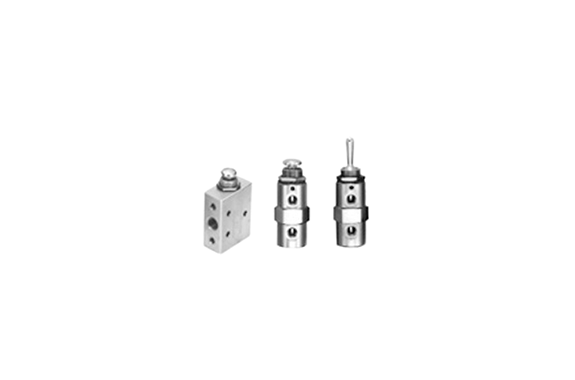

The push-button manual mechanical valve features a compact design that securely attaches the body to the panel using nuts. Additionally, a version is available that maintains the depressed button state, offering increased functionality for various applications.
Specifications
| Item | Basic model |
|---|---|
| Operation type | Spring return, Spring return with holding mechanism |
| Port size | 125P – Rc1/8, 250P – Rc1/4, 2503P – Rc3/8, 125HO – Rc1/8 |
| Media | Air |
| Operating pressure range | 0 ~ 0.9 MPa [0 ~ 131 psi] |
| Proof pressure | 1.35 MPa [13.8 psi] |
| Operating temperature range (atmosphere and media) | 5 ~ 60°C [41 ~ 140°F] |
| Effective area | 125P – 5.5 mm² [0.27], 250P – 15 mm² [0.76], 2503P – 15 mm² [0.76], 125HO – 5.5 mm² [0.27] |
| Flow coefficient | 125P – Cv 0.27, 250P – Cv 0.76, 2503P – Cv 0.76, 125HO – Cv 0.27 |
| Valve stroke | 125P – 6.5 mm [0.255], 250P – 6.5 mm [0.255], 2503P – 6.5 mm [0.255], 125HO – 6.5 mm [0.255] |
| Lubrication | Not required |
| Mass | 125P – 0.10 kg [0.22 lbs], 250P – 0.20 kg [0.44 lbs], 2503P – 0.20 kg [0.44 lbs], 125HO – 0.10 kg [0.22 lbs] |
| Options | Order codes: 2-port, Normally open – 2, 2-port, Normally open with lock for panel mounting – :22 |
