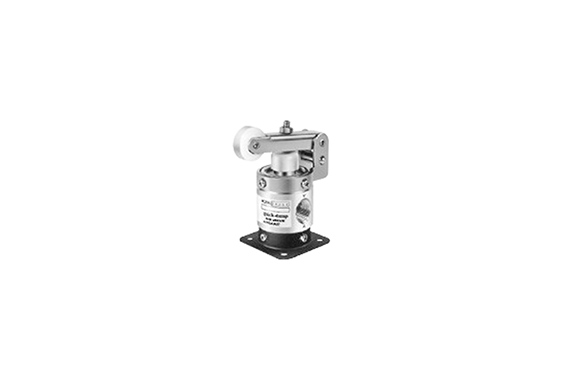

The sturdy design of this component effectively prevents violent movement. As a result, it ensures smooth pilot air switching, enhancing overall system efficiency. This feature plays a key role in maintaining consistent operation by minimizing sudden disruptions. Moreover, it contributes significantly to the reliability of the system, making it ideal for demanding environments. Additionally, its efficiency improves performance, ensuring long-term operational stability.
Specifications
| Item | 125MC | 125MOC | 250C | 2503C |
|---|---|---|---|---|
| Basic model | 125MC | 125MOC | 250C | 2503C |
| Operation type | Roller-cam (Steel roller) | One way roller-cam (Steel roller) | Roller-cam (Nylon roller) | Roller-cam (Nylon roller) |
| Port size | Rc1/8 | Rc1/4 | Rc3/8 | Rc3/8 |
| Operating pressure range | 0 ~ 0.9 MPa [0 ~ 131 psi] | 0 ~ 0.9 MPa [0 ~ 131 psi] | 0 ~ 0.9 MPa [0 ~ 131 psi] | 0 ~ 0.9 MPa [0 ~ 131 psi] |
| Proof pressure | 1.35 MPa [13.8] [196 psi] | 1.35 MPa [13.8] [196 psi] | 1.35 MPa [13.8] [196 psi] | 1.35 MPa [13.8] [196 psi] |
| Operating temperature range (atmosphere and media) | 5 ~ 60°C [41 ~ 140°F] | 5 ~ 60°C [41 ~ 140°F] | 5 ~ 60°C [41 ~ 140°F] | 5 ~ 60°C [41 ~ 140°F] |
| Effective area | 5.5 mm² | 15 mm² | 15 mm² | 15 mm² |
| Flow coefficient | 0.27 Cv | 0.76 Cv | 0.76 Cv | 0.76 Cv |
| Valve stroke | 0.8 mm [0.031 in.] | 1.6 mm [0.063 in.] | 1.6 mm [0.063 in.] | 1.6 mm [0.063 in.] |
| Lubrication | Not required | Not required | Not required | Not required |
| Mass | 0.15 kg [0.33 lbs] | 0.6 kg [1.32 lbs] | 0.6 kg [1.32 lbs] | 0.6 kg [1.32 lbs] |
| Options | 2-port | 2-port | 2-port | 2-port |
| Order codes | Normally open ~11 | Normally open ~11 | Normally open ~11 | Normally open ~11 |
