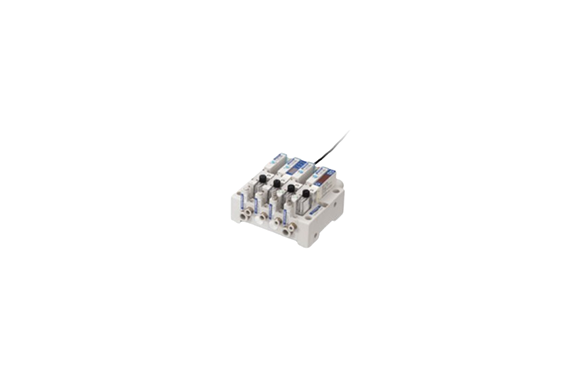

This energy-saving and silent micro ejector delivers outstanding performance for modern pneumatic systems. Moreover, it achieves world-class low noise levels when used with a low-noise type muffler. In addition, it reduces air consumption by approximately 20 percent compared with previous Koganei models. Furthermore, a low-pressure specification lineup is also available, providing greater flexibility for energy-efficient system design.
Specifications
| Item | FME05 | FME05L | FME07 | FME07L | FME10 | FME10L |
|---|---|---|---|---|---|---|
| Media | Air | |||||
| Operating pressure range | MPa [psi]: 0.2 to 0.6 [29 to 87] | MPa [psi]: 0.2 to 0.6 [29 to 87] | MPa [psi]: 0.3 to 0.6 [44 to 87] | MPa [psi]: 0.3 to 0.6 [44 to 87] | MPa [psi]: 0.3 to 0.6 [44 to 87] | MPa [psi]: 0.3 to 0.6 [44 to 87] |
| Proof pressure | MPa [psi]: 0.9 [131] | MPa [psi]: 0.9 [131] | MPa [psi]: 0.9 [131] | MPa [psi]: 0.9 [131] | MPa [psi]: 0.9 [131] | MPa [psi]: 0.9 [131] |
| Operating temperature range (ambient and media) | °C [°F]: 5 to 50 [41 to 122] | °C [°F]: 5 to 50 [41 to 122] | °C [°F]: 5 to 50 [41 to 122] | °C [°F]: 5 to 50 [41 to 122] | °C [°F]: 5 to 50 [41 to 122] | °C [°F]: 5 to 50 [41 to 122] |
| Nozzle diameter | mm [in.]: 0.5 [0.020] | mm [in.]: 0.5 [0.020] | mm [in.]: 0.7 [0.028] | mm [in.]: 0.7 [0.028] | mm [in.]: 1.0 [0.039] | mm [in.]: 1.0 [0.039] |
| Vacuum** | kPa [in.Hg]: −88 ~ −26.6 | kPa [in.Hg]: −88 ~ −26.6 | kPa [in.Hg]: −90 ~ −26.6 | kPa [in.Hg]: −90 ~ −26.6 | kPa [in.Hg]: −90 ~ −26.6 | kPa [in.Hg]: −90 ~ −26.6 |
| Vacuum flow rate** | ℓ/min [ft³/min] (ANR): 5.5 [0.18] | ℓ/min [ft³/min] (ANR): 5.5 [0.18] | ℓ/min [ft³/min] (ANR): 8.0 [0.28] | ℓ/min [ft³/min] (ANR): 8.0 [0.28] | ℓ/min [ft³/min] (ANR): 19.0 [0.67] | ℓ/min [ft³/min] (ANR): 19.0 [0.67] |
| Compressed air consumption** | ℓ/min [ft³/min] (ANR): 10 [0.35] | ℓ/min [ft³/min] (ANR): 14.5 [0.51] | ℓ/min [ft³/min] (ANR): 18 [0.64] | ℓ/min [ft³/min] (ANR): 18 [0.64] | ℓ/min [ft³/min] (ANR): 28 [0.99] | ℓ/min [ft³/min] (ANR): 28 [0.99] |
| Lubrication | Prohibited | |||||
| Filtration | 30 μm | |||||
| Piping size | Vacuum generation port: Quick fitting for φ4, φ6, 1/8 in. tube Compressed air supply port: Quick fitting for φ8 or 1/4 in. tube | Vacuum generation port: Quick fitting for φ4, φ6, 1/8 in. tube Compressed air supply port: Quick fitting for φ8 or 1/4 in. tube | Vacuum generation port: Quick fitting for φ4, φ6, 1/8 in. tube Compressed air supply port: Quick fitting for φ8 or 1/4 in. tube | Vacuum generation port: Quick fitting for φ4, φ6, 1/8 in. tube Compressed air supply port: Quick fitting for φ8 or 1/4 in. tube | Vacuum generation port: Quick fitting for φ4, φ6, 1/8 in. tube Compressed air supply port: Quick fitting for φ8 or 1/4 in. tube | Vacuum generation port: Quick fitting for φ4, φ6, 1/8 in. tube Compressed air supply port: Quick fitting for φ8 or 1/4 in. tube |
| Mounting direction | Any | |||||
| Main valve specifications | Response time**: A/B ms: 40/25 | |||||
| Operation type | Direct acting | |||||
| Valve function | Normally closed (NC)/Normally open (NO) | |||||
| Shock resistance | m/s² [G]: 1373 [140] (axial direction 196 [20]) | |||||
| Mounting valve | GA010LE1-2W | |||||
