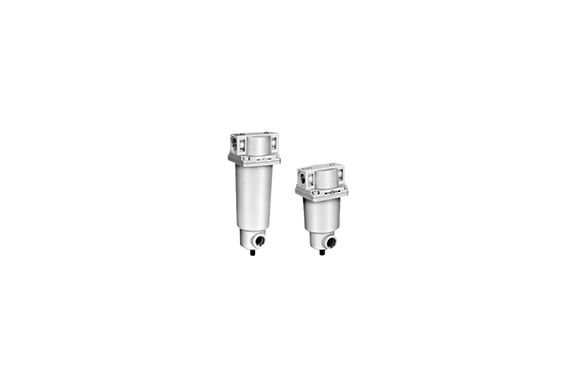

Koganei Micro Mist Filters MMF 600, MMF 800

Manufacturer: KOGANEI CORPORATION

Features

The Large FRL Series micro mist filter features a 0.01 µm element that effectively removes fine dirt and oil particles, ensuring clean and high-quality air. Moreover, this advanced filter offers excellent performance by eliminating contaminants that could otherwise affect the system. In addition, the cartridge-type element simplifies maintenance, making it easier to replace and clean. Consequently, this design not only enhances convenience but also improves the longevity and reliability of the equipment. As a result, it provides a consistent solution for maintaining optimal air quality in various applications.

Specifications

Item	Model	MMF600	MMF800
Media		Air
Port size	Rc	1/2, 3/4, 1	1/2, 3/4, 1
Filtering particle diameter	µm	0.01
Filtering efficiency	%	99.9
Volume of processed air*	ℓ/min [ft³/min] (ANR)	3000 [106]	5000 [177]
Max. operating pressure	MPa [psi]	0.97 [141] (Auto drain type: 0.15～0.97 [22～141])	0.97 [141] (Auto drain type: 0.15～0.97 [22～141])
Proof pressure	MPa [psi]	1.47 [213]
Operating temperature range (atmosphere and media)	°C [°F]	5～60 [41～140]
Drain capacity	cc [in³]	160 [9.8]	160 [9.8]
Mass	kg [lb]	Standard: 1.69 [3.72], Auto drain type: 1.72 [3.79]	Standard: 2.05 [4.52], Auto drain type: 2.08 [4.59]
Materials	Body, bowl	Aluminum die-casting	Aluminum die-casting
	Sight glass	Reinforced glass	Reinforced glass
	Element type	E-60M	E-80MM
Standard attachments		Screw type drain cock	Screw type drain cock
