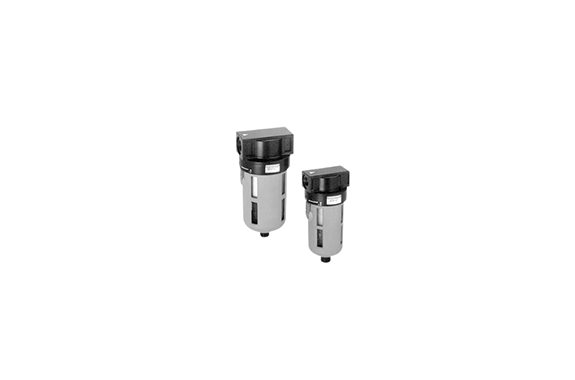

Koganei Micro Mist Filters MMF10, MMF300, MMF400

Manufacturer: KOGANEI CORPORATION

Features

The 0.01µm element effectively eliminates fine particles and oil, providing robust protection for the equipment against breakdowns. Additionally, the click-on bowl design makes it quick and easy to attach and remove, streamlining the maintenance process. Furthermore, the cartridge-type element simplifies routine maintenance, improving efficiency. Moreover, the drain cock, which comes with a fitting and an auto-drain option, is available for enhanced convenience.

Specifications

Item	Model	MMF150	MMF300	MMF400
Media		Air
Port size	Rc	1/4, 3/8	1/4, 3/8, 1/2	1/4, 3/8, 1/2
Filtering particle diameter	µm	0.01	0.01	0.01
Filtering efficiency	%	99.9999	99.9999	99.9999
Volume of processed air*	ℓ/min [ft³/min] (ANR)	150 [5.3]	300 [10.6]	750 [26.5]
Maximum operating pressure	MPa [psi]	0.93 [135]	0.93 [135]	0.93 [135]
Proof pressure	MPa [psi]	1.47 [213]	1.47 [213]	1.47 [213]
Operating temperature range (atmosphere and media)	°C [°F]	5～60 [41～140]	5～60 [41～140]	5～60 [41～140]
Drain capacity	cc [in³]	35 [2.14]	65 [3.97]	90 [5.49]
Mass	kg [lb]	Standard: 0.41 [0.90], Auto drain type: 0.51 [1.12]	Standard: 0.51 [1.12], Auto drain type: 0.79 [1.74]	Standard: 0.78 [1.72], Auto drain type: 0.81 [1.79]
Materials	Body	Zinc die-casting	Zinc die-casting	Aluminum die-casting
	Bowl	Polycarbonate	Polycarbonate	Polycarbonate
	Element type	E-15MM	E-30MM	E-40MM
Standard attachments		Screw type drain cock, bowl guard	Screw type drain cock, bowl guard	Screw type drain cock, bowl guard
