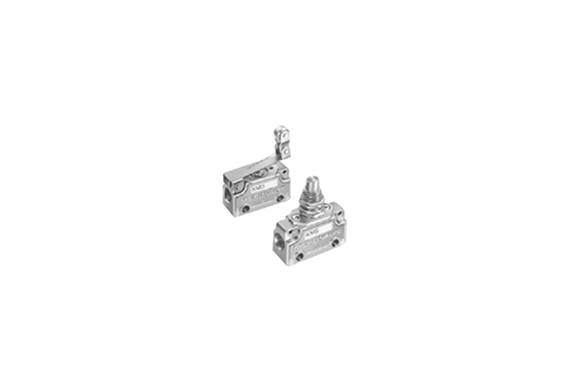

This valve offers minimal change in operating force, even when switching from low to high working pressure. Moreover, there is no neutral position, which ensures smooth switching between the A port and R port. This design enhances efficiency, making the valve easy to operate under varying pressure conditions. Thus, it ensures consistent performance in a wide range of applications.
Specifications
| Item | Basic model |
|---|---|
| Port size | Rc1/8 (1(P), 2(A)), 2 holes φ2 (3(R)) |
| Media | Air |
| Operating pressure range | 0 ~ 0.9 MPa [0 ~ 131 psi] |
| Proof pressure | 1.35 MPa [13.8] [196 psi] |
| Operating temperature range (atmosphere and media) | 0 ~ 60°C [32 ~ 140°F] |
| Effective area | 1.8 mm² |
| Flow coefficient | 0.08 Cv |
| Valve stroke | Approximately 1.5 (For details, see attached table.) |
| Lubrication | Required (Turbine Oil Class 1 (ISO VG32) is recommended) |
| Mass | 0.91 kg [3.17 oz] (KMP type), 0.53 kg [1.87 oz] (KMC type), 0.59 kg [2.07 oz] (KMF type) |
| Options | 2-port |
| Order codes | Normally open ~11 |
| With 3(R) port fitting | ~60 |
