KOGANEI CORPORATION

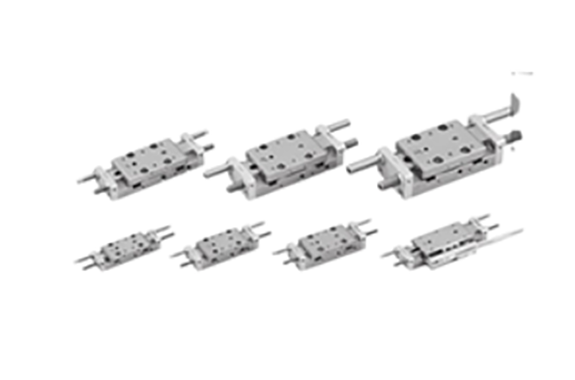

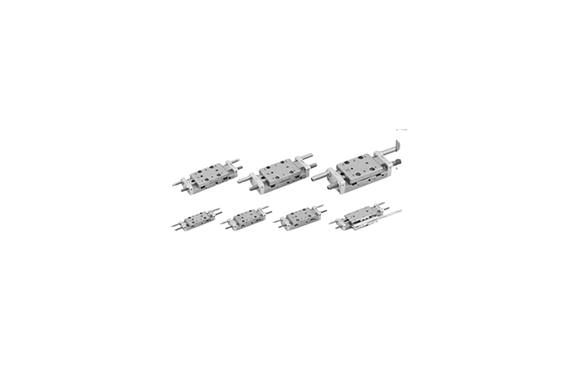

Koganei Mini Guide Tables
Manufacturer: KOGANEI CORPORATION
Features
High-precision mounting
Running parallelism: 0.005 mm [0.0002 in]
Mounting parallelism: 0.03 mm [0.001 in]
Compact design
4-point contact type linear guide
A 4-point contact system stands up to variable loads and complex loads.
Finite-orbit guide with cage for stable linear motion.
Pre-load applied to minimize vibration and improve positioning accuracy.
Sensor switch and sensor rail included
Specifications
| Item | Model | |||||
|---|---|---|---|---|---|---|
| Bore size mm [in] | 6 [0.236] | 8 [0.315] | 10 [0.394] | 12 [0.472] | 16 [0.630] | 20 [0.787] |
| Operating type | Double acting type | |||||
| Media | Air | |||||
| Operating pressure range MPa [psi] | 0.2 to 0.7 [29 to 102] | 0.2 to 0.7 [29 to 102] | 0.15 to 0.7 [22 to 102] | 0.15 to 0.7 [22 to 102] | 0.1 to 0.7 [15 to 102] | 0.1 to 0.7 [15 to 102] |
| Proof pressure MPa [psi] | 1.05 [152] | |||||
| Operating temperature range °C [°F] | 0 to 60 [32 to 140] | |||||
| Operating speed range mm/s [in./sec] | Standard (metal stopper) 30 to 300 [1.181 to 11.8] Shock absorber 30 to 500 [1.181 to 19.7] | Standard (metal stopper) 30 to 300 [1.181 to 11.8] Shock absorber 30 to 500 [1.181 to 19.7] | Standard (metal stopper) 20 to 300 [0.787 to 11.8] Shock absorber 20 to 500 [0.787 to 19.7] | Standard (metal stopper) 20 to 300 [0.787 to 11.8] Shock absorber 20 to 500 [0.787 to 19.7] | Standard (metal stopper) 20 to 300 [0.787 to 11.8] Shock absorber 20 to 500 [0.787 to 19.7] | Standard (metal stopper) 20 to 300 [0.787 to 11.8] Shock absorber 20 to 500 [0.787 to 19.7] |
| Cushion | Standard (metal stopper) | Standard (metal stopper) | Shock absorber type (optional) | |||
| Port size | M3 × 0.5 | M5 × 0.8 | ||||
| Lubrication | Cylinder portion: Not required (if lubricated, use equivalent of turbine oil 1 (ISO VG32)) | Guide portion: Required (CGL grease, made by Nippon Thompson CO., LTD.) | ||||
| Repeatability | ±0.02 [±0.001] | |||||
| Stroke adjustment range (one side) mm [in] | Standard (metal stopper) −8 to 0 [−0.315 to 0] Shock absorber −8 to 0 [−0.315 to 0] | Standard (metal stopper) −10 to 0 [−0.394 to 0] Shock absorber −10 to 0 [−0.394 to 0] | Standard (metal stopper) −10 to 0 [−0.394 to 0] Shock absorber −10 to 0 [−0.394 to 0] | Standard (metal stopper) −10 to 0 [−0.394 to 0] Shock absorber −10 to 0 [−0.394 to 0] | Standard (metal stopper) −10 to 0 [−0.394 to 0] Shock absorber −10 to 0 [−0.394 to 0] | Standard (metal stopper) −10 to 0 [−0.394 to 0] Shock absorber −10 to 0 [−0.394 to 0] |
| Number of available sensor switches (optional) | 2 pieces | |||||
