KOGANEI CORPORATION

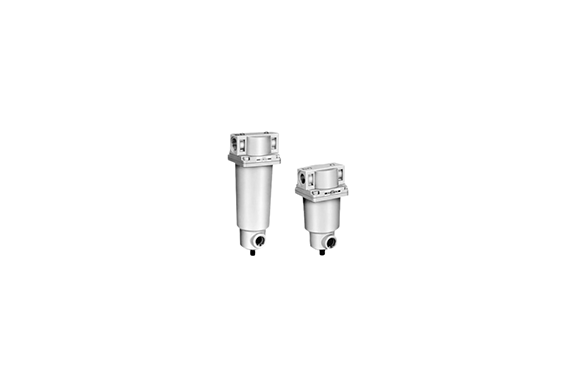

Koganei Mist Filters MF 800, MF 1000
Manufacturer: KOGANEI CORPORATION
Features
The Large FRL Series mist filter, with its 0.3 µm element, efficiently removes both dirt and oil. Furthermore, this filter’s cartridge-type element makes maintenance significantly easier. In addition, it ensures consistent performance over time, contributing to longer equipment life. As a result, the filter enhances overall system efficiency, providing a reliable and effective solution for maintaining clean air.
Specifications
| Item | Model | MF800 | MF1000 |
|---|---|---|---|
| Media | Air | ||
| Port size | Rc | 1/2, 3/4, 1 | 1/2, 3/4, 1 |
| Filtering particle diameter | µm | 0.3 | |
| Filtering efficiency | % | 99.9 | |
| Volume of processed air* | ℓ/min [ft³/min] (ANR) | 4000 [141] | 6000 [212] |
| Max. operating pressure | MPa [psi] | 0.97 [141] (Auto drain type: 0.15～0.97 [22～141]) | 0.97 [141] (Auto drain type: 0.15～0.97 [22～141]) |
| Proof pressure | MPa [psi] | 1.47 [213] | |
| Operating temperature range (atmosphere and media) | °C [°F] | 5～60 [41～140] | |
| Drain capacity | cc [in³] | 160 [9.5] | 180 [10.95] |
| Mass | kg [lb] | Standard: 1.76 [3.88], Auto drain type: 1.79 [3.95] | Standard: 2.10 [4.63], Auto drain type: 2.13 [4.70] |
| Materials | Body, bowl | Aluminum die-casting | Aluminum die-casting |
| Sight glass | Reinforced glass | Reinforced glass | |
| Element type | E-80M | E-100M | |
| Standard attachments | Screw type drain cock | Screw type drain cock | |
