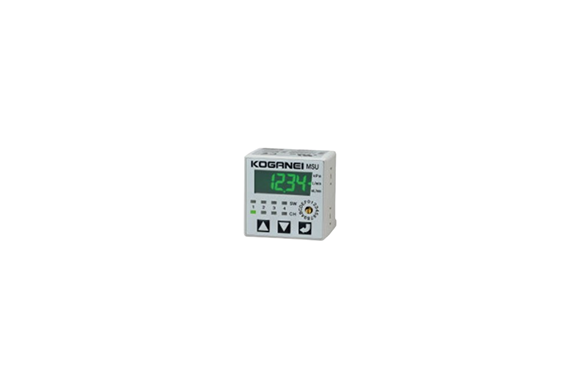

Koganei Multi-Channel, Multi-Sensor Controller MSU Series
Manufacturer: KOGANEI CORPORATION
Features
One controller centrally manages up to four sensors with outputs ranging from 1 to 5 V, ensuring efficient system control. Moreover, when using the RS485 communication type, you can centrally manage up to 16 controllers. As a result, the system can support a maximum of 64 sensor heads, offering scalable and powerful monitoring capabilities.
Specifications
| Item | Specifications |
|---|---|
| Power supply | Voltage 12 to 24 VDC ±10% *Use a Class 2 power supply. |
| Sensor head supply voltage 12 to 24 VDC ±10% (*Depending on power supply voltage) | |
| Consumption current 100 mA MAX. (Not including supply power to sensors) | |
| Sensor input | Number of connected sensors 4 |
| Maximum consumption current for sensor head Each channel: under 150 mA | |
| Input voltage range 1.0 to 5.0 VDC | |
| Input impedance 1 MΩ | |
| Maximum applied voltage 5.6 V MAX. | |
| Compatible sensor heads MSU-PH-EA: -101.3 to 0.0 kPa [-29.9 to 0.00 inHg] MSU-PH-ER: -100.0 to 220.0 kPa [-29.5 to 65.0 inHg] MSU-PH-EM: -100 to 1000 kPa [-29.5 to 295 inHg] FS-R05: -500 to 500 mL/min [-0.018 to 0.018 ft³/min] FS-R33: 0 to 0.33 L/min [0 to 0.012 ft³/min] FS-R3: 0 to 3.0 L/min [0.106 to 0.106 ft³/min] FS-10: 0 to 10.0 L/min [0.002 to 0.35 ft³/min] Any sensor (set display at 1 V and 5 V) | |
| External output | Output points 4 |
| Output method MSU-□: NPN open collector MSU-□-PNP: PNP open collector | |
| Responsiveness 5 ms (when filter function is OFF) | |
| Load voltage 30 V MAX. | |
| Load current 50 mA MAX. | |
| Internal voltage drop NPN: 0.3 V MAX. (when 5 mA) PNP: 2 V MAX. (when 50 mA) | |
| Output mode Hysteresis mode, window comparator mode 1, window comparator mode 2, high mode, low mode, output OFF mode | |
| Repeatability 1% F.S | |
| External input | Input points: 4 |
| Functions: Zero reset or import reference pressure | |
| Display | Display type: LCD display |
| Color: 2 color display (red, green) | |
| Number of digits displayed: (-) 4-digit display | |
| Display resolution: MSU-PH-EA: 0.1 kPa [0.030 inHg] MSU-PH-ER: 0.1 kPa [0.30 inHg] MSU-PH-EM: 1 kPa [0.30 inHg] FS-R05: 1 mL/min [0.000 ft³/min] FS-R33: 0.01 L/min [0.000 ft³/min] FS-R3: 0.01 L/min [0.000 ft³/min] FS-10: 0.1 L/min [0.002 ft³/min] (If more than 5.00 L/min, then it is 0.5 L/min) | |
| Switch output confirmation LED Lit when external output is ON (red LED) | |
| Display channel confirmation LED LED that corresponds to the currently displayed pressure lights (green LED) | |
| Display accuracy 1%F.S. ±1 digit (Controller stand alone) | |
| Functions Auto scan, zero adjust, setting of update cycle, backlight setting, setting for turning LEDs off, peak-hold, bottom-hold | |
| Filter (Applicable to both SW output and display) OFF to level 7 |
