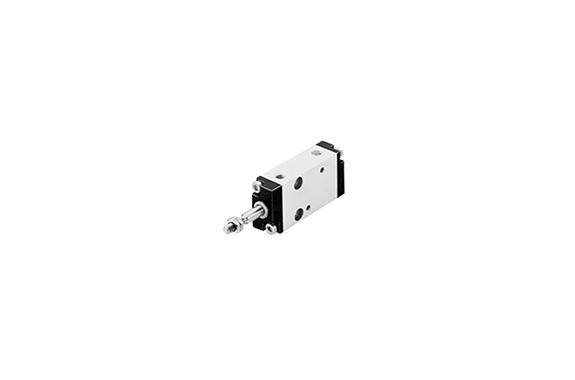

Koganei Multi Mount Cylinders Single Acting Pull Type

Manufacturer: KOGANEI CORPORATION

Features

In addition to the directly installed side mounting type, 3 types of mounting brackets provide appropriate responses for various mounting requirements.
Moreover, this is a design that secures a high degree of parallel and perpendicular accuracy in relation to the piston rod axial center and mounting surface in any mounting type.
This combination of a square and compact body with mounting brackets has further broadened the degree of freedom for equipment design.

Even while preserving the basic design of previous types, we have made overall improvements through the addition of a built-in rubber bumper and other changes.
We have not only expanded the series but have also boosted reliability and utility.
Even the non-rotating type is now available in the double-acting type, the single-acting push/pull types, and the double-acting double rod type, to respond to diversified needs with high non-rotating precision by the guide pin.
Although the 3 types of sensor switches are all compact with cross-section dimensions of φ4mm [0.157in.], mounting to the cylinder and adjusting the position are easy.
Comes with a movement indicator lamp that makes it possible to monitor movement from 4 directions, providing multi-functional support for small movements.

Specifications

Item	Bore size mm [in.]
Item	6 [0.236]	10 [0.394]	16 [0.630]
Media	Air
Double acting type Operating pressure range MPa [psi.]	0.15～0.7 [22～102]	0.1～0.7 [15～102]	0.08～0.7 [12～102]
Single acting push type Operating pressure range MPa [psi.]	0.2～0.7 [29～102]	0.15～0.7 [22～102]	0.15～0.7 [22～102]
Single acting pull type Operating pressure range MPa [psi.]	0.3～0.7 [44～102]	0.2～0.7 [29～102]	0.2～0.7 [29～102]
Double acting double rod type Operating pressure range MPa [psi.]	0.2～0.7 [29～102]	0.15～0.7 [22～102]	0.1～0.7 [15～102]
Proof pressure MPa [psi.]	1.03 [149]
Operating temperature range °C [°F]	0～60 [32～140]
Operating speed range mm/s [in./sec.]	50～500 [2.0～19.7]	50～500 [2.0～19.7]	50～500 [2.0～19.7]
Cushion	Rubber bumper
Lubrication	Not required (If lubrication is required, use Turbine Oil Class 1 [ISO VG32] or equivalent.)
Port size	M5 X 0.8
Stroke tolerance mm [in.]	+1 [0.039]	0
