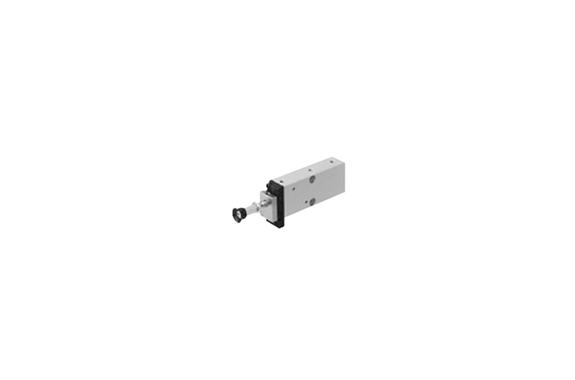

Koganei Multimount Cylinders For Vacuum Pads Double Acting Non-Rotating Type
Manufacturer: KOGANEI CORPORATION
Features
This cylinder series supports bore sizes from φ10 to 16 mm (0.394 to 0.630 in), covering a wide range of compact applications. Moreover, the hollow-rod construction significantly reduces overall length, which helps save valuable installation space. In addition, one-side surface piping increases layout flexibility and simplifies system design. As a result, the cylinder easily meets diverse requirements, including vacuum system suction and precise workpiece handling.
Specifications
| Item | Cylinder bore 10 mm | Cylinder bore 16 mm |
|---|---|---|
| Operation | Double acting | |
| Media | Air | |
| Pressure range MPa [kgf/cm²] | 0.15 ~ 0.7 [1.5 ~ 7.1] | 0.1 ~ 0.7 [1 ~ 7.1] |
| Vacuum port pressure | −101.32 kPa ~ −0.6 MPa (Vacuum breaking time: The time taken to go from 0 to 0.6 MPa) | |
| Proof pressure MPa [kgf/cm²] | 1.03 [10.5] | |
| Temperature range °C | 0 ~ 60 | |
| Velocity range mm/s | 50 ~ 500 | |
| Cushion | Rubber bumper | |
| Lubrication | Not necessary (If you lubricate, use product with mixed grease lubricating oil ISO VG32 standards) | |
| Non-rotating accuracy | ±1.5° | ±1° |
| Port (atmospheric pressure / vacuum pressure) | M5 × 0.8 | |
| Stroke tolerance mm | +1 / 0 | |
| Rod tip thread | M4 × 0.7, male thread | M5 × 0.8, male thread |
