The MED Series uses a two-level nozzle construction to deliver nearly twice the suction flow rate while maintaining the same nozzle diameter. As a result, it significantly improves vacuum performance without increasing size. Moreover, this efficient design enhances productivity and supports stable operation across demanding applications.
KOGANEI CORPORATION

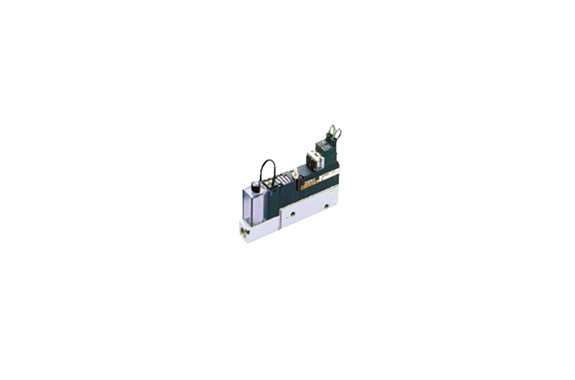

Koganei Multistage Micro Ejectors MED07-E, MED10-E
Manufacturer: KOGANEI CORPORATION
Features
Specifications
| Item | MED07-E□ | MED10-E□ |
|---|---|---|
| Media | Air | |
| Operating pressure range MPa [psi] | 0.2 ~ 0.6 [29 ~ 87] | |
| Proof pressure MPa [psi] | 1.03 [149] | |
| Operating temperature range (atmosphere and media) °C [°F] | 5 ~ 50 [41 ~ 122] | |
| Nozzle diameter mm [in.] | 0.7 [0.028] | 1.0 [0.039] |
| Vacuum kPa [in.Hg] | -84 [-24.8] | |
| Vacuum flow rate ℓ/min [ft³/min] (ANR) | 25 [0.88] | 50 [1.77] |
| Compressed air consumption ℓ/min [ft³/min] (ANR) | 23 [0.81] | 46 [1.62] |
| Lubrication | Prohibited | |
| Filtration μm | 30 | |
| Port size | Vacuum generation port: Rc1/4 | |
| Compressed air supply port: Rc1/8 (Rc1/4) Note 3 | ||
| Mounting direction | Any | |
| Main valve specifications | Operation type: Indirect operating | |
| Number of positions / number of ports: 2 positions, 2 ports | ||
| Valve function: Normally closed (NC standard) or normally open (NO optional) | ||
| Effective area mm² [Cv]: 4.5 [0.25] | ||
| Shock resistance m/s² [G]: 1372.9 [140] (Axial direction 588.4 [60]) | ||
| Manual override: Non-locking type | ||
