- Koganei NHB Series Linear Guide Specification with Fingers Single Acting Normally Open Parallel Type
KOGANEI CORPORATION

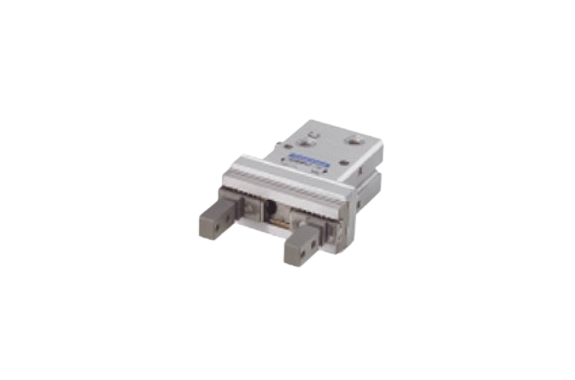

Koganei NHB Series Linear Guide Specification with Fingers Single Acting Normally Open Parallel Type
Manufacturer: KOGANEI CORPORATION
Features
Fingers attach easily, allowing fast installation and smooth setup.
Additionally, the gripper achieves a gripping position repeatability of ±0.01 mm [±0.0004 in.], ensuring high precision for automated handling tasks.
Specifications
| Item | Basic model | |||
|---|---|---|---|---|
| NHBPRGY-8 | NHBPRGY-10 | NHBPRGY-16 | NHBPRGY-20 | |
| Cylinder bore size mm [in.] | 8 [0.315] | 10 [0.394] | 16 [0.630] | 20 [0.787] |
| Operation type | Single acting normally open type | |||
| Media | Air | |||
| Operating pressure range MPa [psi] | 0.4–0.7 [58–102] | 0.35–0.7 [51–102] | 0.25–0.7 [36–102] | 0.25–0.7 [36–102] |
| Proof pressure MPa [psi] | 1.05 [152] | |||
| Operating temperature range °C [°F] | 0–60 [32–140] | |||
| Maximum operating frequency cycle/min | 100 | |||
| Lubrication | Not required | |||
| Effective gripping force (F)¹ N [lbf] Closed side | 4.1 [0.92] | 6.8 [1.53] | 20.0 [4.50] | 34.0 [7.64] |
| Effective gripping force (F)¹ N [lbf] Open side | 2.7 [0.61] | 2.4 [0.54] | 5.4 [1.21] | 7.3 [1.64] |
| Lever open/closed stroke mm [in.] | 4 [0.157] | 6.5 [0.256] | 10 [0.394] | 14 [0.551] |
| Repeatability mm [in.] | ±0.01 [±0.0004] | |||
| Port size | M3 × 0.5 | M3 × 0.5 | M5 × 0.8 | M5 × 0.8 |
| Mass² g [oz.] | 28 [0.99] (33 [1.16]) | 91 [3.21] (102 [3.60]) | 181 [6.38] (200 [7.05]) | 371 [13.09] (397 [14.00]) |
