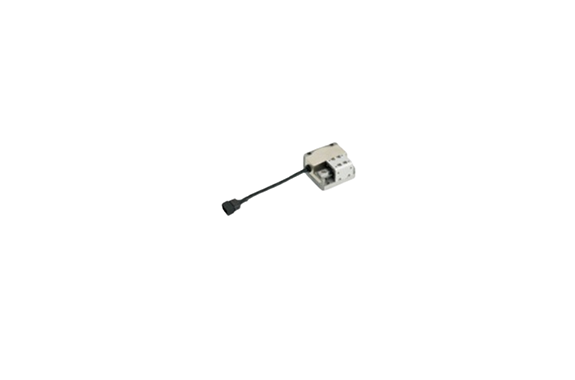

Koganei NS Slider

Koganei NS Slider

Manufacturer: KOGANEI CORPORATION

Features

Enhance your industrial automation with our advanced compact and thin square form actuators. Because these units feature a lightweight and low-profile design, you can easily integrate them into space-constrained machinery. Furthermore, the long table construction provides a perfect solution for precise pressing control. This design actively improves safety through an integrated fall prevention function with a self-lock mechanism. Additionally, the built-in connector allows you to immediately solve disconnection issues by simply replacing the relay cable. Since the system utilizes open-loop control, it offers a lower-cost alternative to complex linear motors while maintaining extremely quiet operation. Moreover, you can achieve highly flexible performance by easily adjusting stroke, speed, and thrust level settings. Consequently, these versatile actuators work seamlessly with various controllers, including point input and CC-Link remote I/O types.

Specifications

Item \ Type		EWM5HSA/EWM5HLA	EWM5SSA/EWM5SLA
Motor		Two phase stepping motor
Maximum thrust^*1	N	18 to 27	42 to 65
Maximum payload^*2	kg [lb]	1 [2.205] (horizontal), 0.4 [0.882] (vertical)	2 [4.409] (horizontal), 0.8 [1.764] (vertical)
Maximum speed^*3	mm/s [in/sec]	120 [4.724]	50 [1.969]
Minimum operation time	s	0.25 (st.20), 0.42 (st.40)	0.50 (st.20), 0.90 (st.40)
Minimum speed	mm/s [in/sec]	1 [0.039]
Repeated positioning precision	mm [in.]	±0.03 [0.001]
Operating temperature range		0 to 40 [32 to 104]
Allowable moment	My (yawing) N·m [in·lbf]	1 [8.9]
	Mp (pitching) N·m [in·lbf]	1 [8.9]
	Mr (rolling) N·m [in·lbf]	1.5 [13.3]
Mass	kg [lb]	0.27 [0.595] (st.20, short table type), 0.30 [0.661] (st.20, long table type) 0.35 [0.772] (st.40, short table type), 0.40 [0.882] (st.40, long table type)	–
Applicable controllers		EWHC-NH, EWHCP-NH
