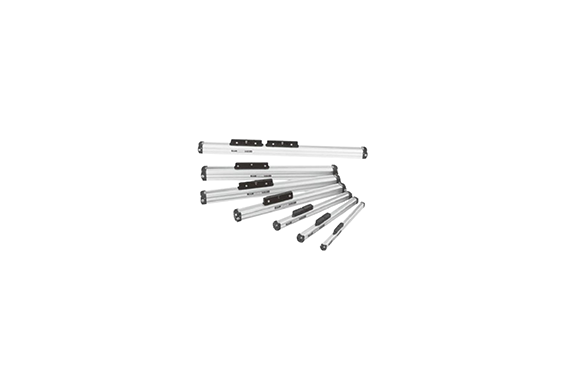

Koganei ORCA Basic Type

Manufacturer: KOGANEI CORPORATION

Features

1. Space-saving design
Almost the total length of the cylinder body is equal to a cylinder stroke, and the installation space is 1/2 of conventional cylinders.
Also, multiple piping ports are arranged. This port arrangement allows versatile plumbing applications including one side piping.

2. High-speed operation
High-speed operation of 3000mm/s [118 in./sec.] is also possible.
(ORCA16, 20 and ORGA have maximum speeds of 1500mm/s [59 in./sec.].)

3. Various options
Various piston mounts and mounting brackets, many types of easily mounted small sensor switches, and fluoro rubber specification are available.

Specifications

Item	Bore size mm [in.]
	16 [0.630]	20 [0.787]	25 [0.984]	32 [1.260]	40 [1.575]	50 [1.969]
Media	Air
Operation type	Double acting type
Operating pressure range MPa [psi.]	0.1～0.8 [15～116]	0.1～0.8 [15～116]	0.1～0.8 [15～116]	0.1～0.8 [15～116]	0.1～0.8 [15～116]	0.1～0.8 [15～116]
Proof pressure MPa [psi.]	1.2 [174]
Operating temperature range °C [°F]	0～60 [32～140]
Operating speed range mm/s [in./sec.]	100～1500 [3.9～59.1]	100～3000 [3.9～118.1]	100～3000 [3.9～118.1]	100～3000 [3.9～118.1]	100～3000 [3.9～118.1]	100～3000 [3.9～118.1]
Cushioning stroke mm [in.]	15 [0.591]	18 [0.709]	21 [0.827]	26 [1.024]	40 [1.575]	—
Lubrication	Not required
Stroke tolerance mm [in.] 1000 [39.37] or less	+1.5 [+0.059] 0	+1.5 [+0.059] 0	+1.5 [+0.059] 0	+1.5 [+0.059] 0	+1.5 [+0.059] 0	+1.5 [+0.059] 0
Stroke tolerance 1001～3000 mm [39.41～118.11]	+2.0 [+0.079] 0	+2.0 [+0.079] 0	+2.0 [+0.079] 0	+2.0 [+0.079] 0	+2.0 [+0.079] 0	+2.0 [+0.079] 0
Stroke tolerance 3001～5000 mm [118.15～196.85]	—	+2.5 [+0.098] 0	+2.5 [+0.098] 0	+2.5 [+0.098] 0	+2.5 [+0.098] 0	+2.5 [+0.098] 0
Port size	M5×0.8	Rc1/8	Rc1/8	Rc1/4	Rc1/4	Rc3/8
