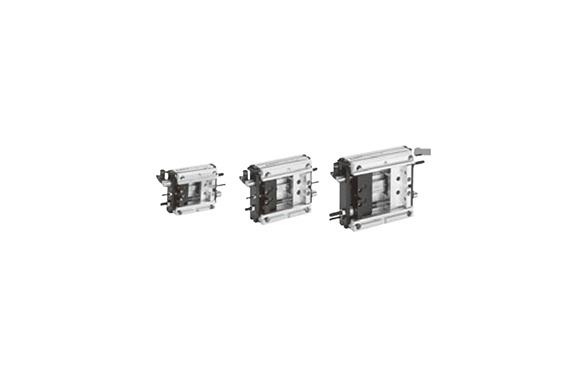

Koganei Parallel Clamping Modules

Manufacturer: KOGANEI CORPORATION

Features

This module effectively functions as the fingers in the hand (gripper) unit. Because the cylinder operates asynchronously, it offers superior positioning during clamping. As a result, it ensures precise and reliable gripping. Furthermore, this module is particularly suitable for handling small workpieces, making it an ideal choice for tasks requiring stability and flexibility. Additionally, it enhances overall efficiency in delicate operations, ensuring consistent performance across various applications.

Specifications

Item	Model
	SHM71S	SHM71M	SHM71L
Mounting specification	S	M	L
Mounted surface	S	M	L
Cylinder bore size mm [in.]	8 [0.315]	10 [0.394]	12 [0.472]
Stroke mm [in.]	One side 8 [0.315]	One side 12 [0.472]	One side 15 [0.591]
Media	Air
Operating pressure range MPa [psi]	0.2～0.6 [29～87]	0.2～0.6 [29～87]	0.2～0.6 [29～87]
Proof pressure MPa [psi]	1 [145]
Operating temperature range °C [°F]	0～60 [32～140]
Operation type and mechanism	Normally open single acting type, asynchronous type, linear ball guide, with stroke adjusting mechanism
Lubrication	Not required
Gripping force N [lbf]	When open (Spring force)
When open (Spring force)	2.5～6.9 [0.56～1.55]	3～12.7 [0.67～2.85]	3～12.9 [0.67～2.89]
When closed	21.6～33.2 [4.8～7.5]	21.6～36 [4.8～8.1]	25.4～36.2 [5.7～8.1]
Allowable moment N·cm [lbf·in]	Pitching	100 [8.9]	210 [18.7]	460 [40.7]
Yawing	80 [7.1]	160 [14.2]	350 [31.0]
Rolling	160 [14.2]	290 [25.7]	980 [86.7]
Repeatability mm [in.]	±0.01 [±0.0004]
Maximum operating frequency	40
Sensor switches	Operation detection X2
Gripping width mm [in.]	26～42 [1.02～1.65]	33～57 [1.30～2.24]	43～73 [1.69～2.87]
Mass g [oz.]	240 [8.5]	450 [15.9]	880 [31.1]
