KOGANEI CORPORATION

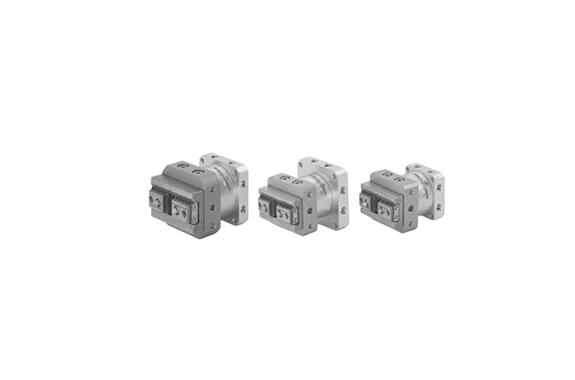

Koganei Parallel Clamping Modules
Manufacturer: KOGANEI CORPORATION
Features
This module functions as the fingers in the hand (gripper) unit. It operates as a synchronous open/closed stroke type using linear guides. As a result, it provides precise and reliable motion, ensuring effective gripping and handling of workpieces in automated processes.
Specifications
| Item | Model | ||
|---|---|---|---|
| SHM73J-16 | SHM73J-12 | SHM73B-12 | |
| Mounting | J | J | B |
| Bore size mm [in.] | 16 [0.630] | 12 [0.472] | 12 [0.472] |
| Operation type | Double acting type | ||
| Operating pressure range MPa [psi] | 0.2～0.6 [29～87] | 0.2～0.6 [29～87] | 0.2～0.6 [29～87] |
| Proof pressure MPa [psi] | 1.0 [145] | ||
| Maximum operating frequency cycle/min | 180 | ||
| Lubrication | Not required | ||
| Effective gripping force N [lbf] | Closed side | ||
| Closed side | 33.0 [7.42] | 17.0 [3.82] | 17.0 [3.82] |
| Open side | 43.0 [9.67] | 22.5 [5.06] | 22.5 [5.06] |
| Open/closed stroke mm [in.] | 6 ±0.5 [0.236 ±0.020] | ||
| Repeatability mm [in.] | ±0.01 [±0.0004] | ||
| Port size | M5×0.8 | ||
| Mass g [oz.] | 240 [8.47] | 135 [4.76] | 120 [4.23] |
