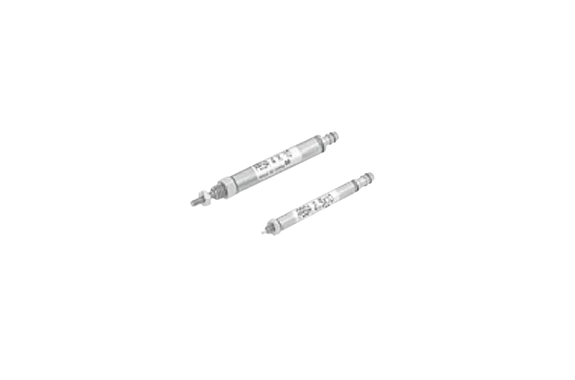

Koganei Pen Cylinders φ2.5, φ4 Single Acting Push Type
Manufacturer: KOGANEI CORPORATION
Features
The Pen Cylinder’s compactness and easy handling make production lines in a broad range of industries.
A new release with even lighter weight and more.
Specifications
| Item | Bore size mm [in.] | |
|---|---|---|
| 2.5 [0.098] | 4 [0.157] | |
| Operation type | Single acting push type | |
| Media | Air | |
| Mounting type | Basic type | |
| Operating pressure range MPa [psi.] | 0.34～0.7 [49～102] | 0.34～0.7 [49～102] |
| Proof pressure MPa [psi.] | 1.05 [152] | |
| Operating temperature range °C [°F] | 0～60 [32～140] | |
| Operating speed range mm/s [in./sec.] | 50～300 [2.0～11.8] | 50～300 [2.0～11.8] |
| Cushion | None | |
| Lubrication | Not required | |
| Minimum operating pressure MPa [psi.] | 0.34 [49] | |
| Port size | φ4 X 7 φ2.5 Barb fitting for nylon and urethane tubes is equipped with the head cover. | |
