KOGANEI CORPORATION

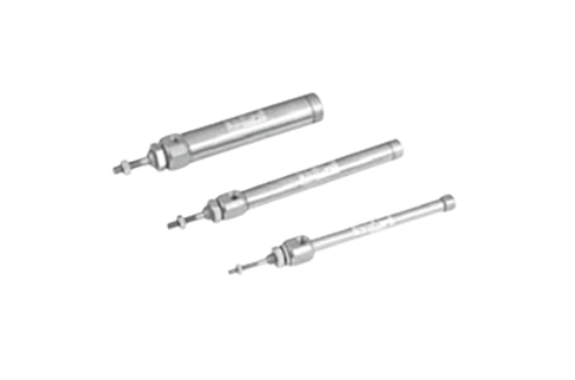

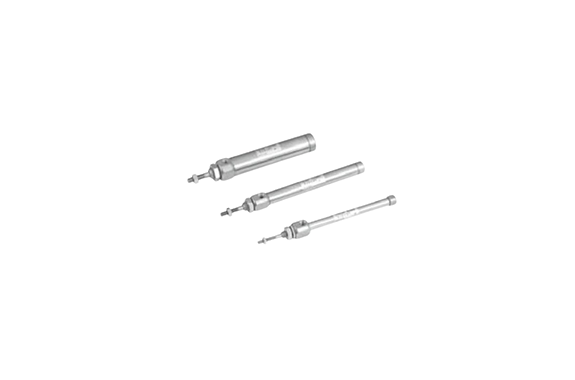

Koganei Pen Cylinders Heat Resistant Specification Cylinders
Manufacturer: KOGANEI CORPORATION
Features
The Pen Cylinder’s compactness and easy handling make production lines in a broad range of industries.
A new release with even lighter weight and more.
Specifications
| Item | Bore size mm [in.] | ||
|---|---|---|---|
| 6 [0.236] | 10 [0.394] | 16 [0.630] | |
| Operation type | Double acting type | ||
| Mounting type | See the table at lower right | ||
| Media | Air | ||
| Operating pressure range MPa [psi.] | 0.3～0.7 [44～102] | 0.2～0.7 [29～102] | 0.15～0.7 [22～102] |
| Proof pressure MPa [psi.] | 1.05 [152] | ||
| Operating temperature range °C [°F] | 0～150 [32～302] | ||
| Operating speed range mm/s [in./sec.] | 50～500 [2.0～19.7] | 50～500 [2.0～19.7] | 50～500 [2.0～19.7] |
| Cushion | None | ||
| Lubrication | Not required | ||
| Port size | M5 X 0.8 | ||
