KOGANEI CORPORATION

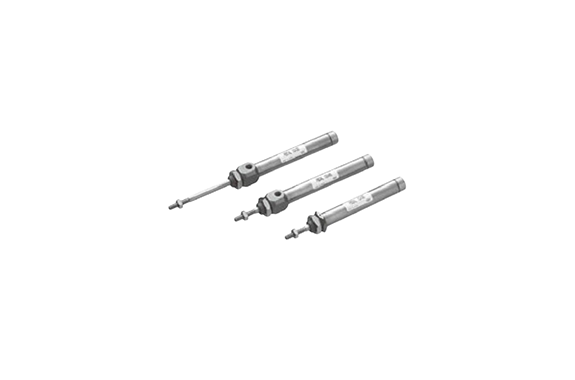

Koganei Pen Cylinders Non-Rotating Cylinders
Manufacturer: KOGANEI CORPORATION
Features
The Pen Cylinder’s compactness and easy handling make production lines in a broad range of industries.
A new release with even lighter weight and more.
Specifications
| Item | Bore size mm [in.] | |
|---|---|---|
| 10 [0.394] | 16 [0.630] | |
| Operation type | Double acting type, Single acting push type, Single acting pull type | |
| Mounting type | Basic type, Foot type, Flange type, Clevis type | |
| Media | Air | |
| Operating pressure range MPa [psi.] | 0.1～0.7 [15～102] | 0.1～0.7 [15～102] |
| Proof pressure MPa [psi.] | 1.05 [152] | |
| Operating temperature range °C [°F] | 0～70 [32～158] | |
| Operating speed range mm/s [in./sec.] | 50～500 [2.0～19.7] | 50～500 [2.0～19.7] |
| Cushion | Fixed type (rubber bumper) | |
| Lubrication | Not required | |
| Port size | M5 X 0.8 | |
| Non-rotating accuracy | ±2° | |
