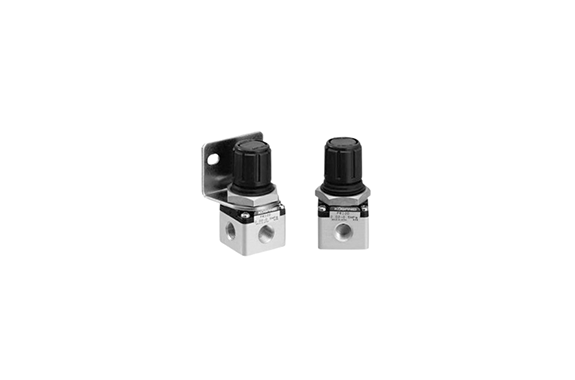

A compact precision regulator delivers exceptionally fine pressure control with a sensitivity of 0.001 MPa. Moreover, it allows users to make highly accurate adjustments with ease, ensuring stable system performance. Consequently, it supports demanding applications that require precise and consistent pressure management.
Specifications
| Item | Model | PR100 |
|---|---|---|
| Media | Air | |
| Port size | Rc | 1/8 |
| Sensitivity | MPa [psi] | 0.001 [0.15] |
| Pressure setting range | MPa [psi] | 0.02～0.5 [2.9～72.5] |
| Maximum operating pressure | MPa [psi] | 0.93 [135] |
| Proof pressure | MPa [psi] | 1.5 [218] |
| Operating temperature range (atmosphere and media) | °C [°F] | 5～60 [41～140] |
| Air consumption Note | ℓ/min [ft³/min.] (ANR) | 1.5 [0.053] |
| Lubrication | Not required | |
| Mass | kg [lb.] | 0.07 [0.15] |
| Materials | Aluminum |
