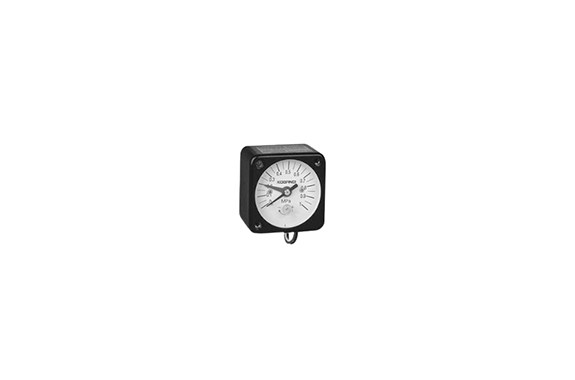

Koganei Pressure Gauges With Built-In Switch GS1-50
Manufacturer: KOGANEI CORPORATION
Features
The set pressure and operating pressure are clearly indicated on the same pressure gauge, offering a streamlined solution. In addition, panel mounting provides convenient centralized control and management directly within the control panel, enhancing ease of use.
Furthermore, an indicator is included as standard equipment to monitor the switch operation state, ensuring accurate performance. For wiring connections, two methods are available: the standard grommet (lead wire) type and an optional DIN connector type, giving you flexibility in installation.
Specifications
| Item | Model | GS1-50 |
|---|---|---|
| Media | Air | |
| Maximum operating pressure | MPa [psi] | 0.83 [120] |
| Pressure gauge specifications | Operating temperature range (atmosphere and media) | 5～60 [41～140] |
| Pressure indicator range | 0～1.0 [0～145] | |
| Indicator accuracy | F.S. ±3% | |
| Pressure adjusting range | 0.1～0.83 [14～120] | |
| Regulating pressure indication error* | ±0.5 [±7] | |
| Repeatability** | ±0.05 [±0.7] | |
| Hysteresis | 0.07 [1] | |
| Switch specifications | Contact type | Micro switch, a contact (NO) |
| Wiring | Standard: Lead wire length: About 500mm [19.7in.] | |
| Option | DIN connector | |
| Indicator | Standard equipment: LED for DC, neon lamp for AC | |
| Shock resistance | m/s² [ft./sec²] | 9.8 [1] |
| Mounting direction | Any | |
| Mass | kg [oz.] | 0.17 [6.0] (0.19 [6.7] with DIN connector) |
| Materials | Body | Aluminum die-casting |
| Case | SPCC | |
| Flats of nipple section | Brass | |
| Bourdon tube | Brass |
