Use the proportional control valve together with the KFPC1 controller, and achieve more accurate and stable flow control. As a result, the system responds smoothly to control signals and maintains consistent performance. Moreover, this combined setup improves adjustability and repeatability, so operators can optimize process conditions with greater confidence and efficiency.
- Home
- Products
- Koganei Proportional Control Valves KFPV050 Series Rc1/4 Direct Acting 2-port Valve, Plunger Type
KOGANEI CORPORATION

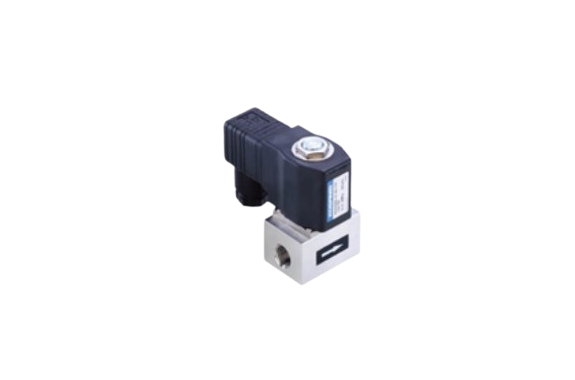

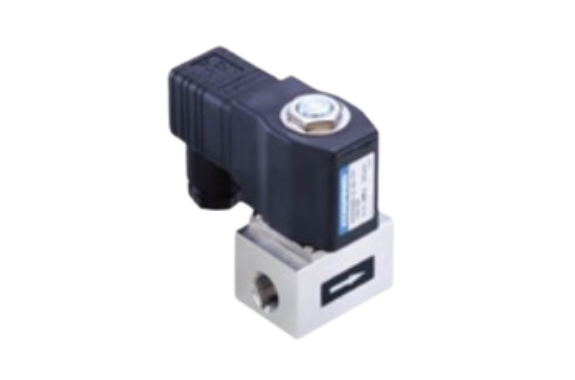

Koganei Proportional Control Valves KFPV050 Series Rc1/4 Direct Acting 2-port Valve, Plunger Type
Manufacturer: KOGANEI CORPORATION
Features
Specifications
| Basic type | KFPV050 |
| MediaNote 1 | Air, neutral gas, water (other gases and liquids that do not affect component parts) |
| Seal material | FKM |
| Material for the body | Brass or stainless steel |
| Temperature range of media used | −10 to 90 °C [14 to 194 °F] (non-freezing) |
| Operation system | Direct drive type |
| Ambient temperature range (ambient atmosphere) | 0 to 55 °C [32 to 131 °F] |
| Media viscosity | Less than 21 × 10−6 |
| Mounting directionNote 2 | Any |
| Protection level | IP65 compliant |
