KOGANEI CORPORATION

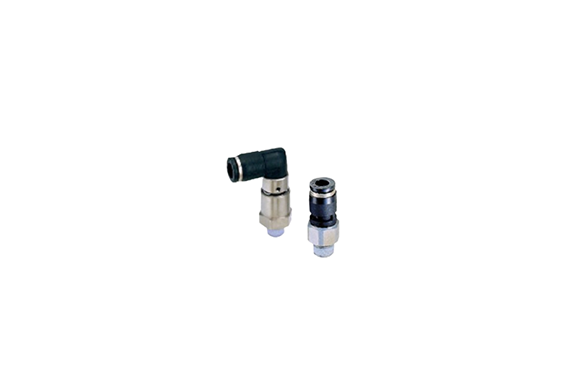

Koganei Quick Fittings Rotary Type Standard Type
Manufacturer: KOGANEI CORPORATION
Features
This design is optimal for swing and rotating portions, thanks to its built-in bearing that ensures smooth operation. Additionally, the high rotary type, designed specifically for high-speed rotation, incorporates dual bearings. As a result, it further reduces radial loads, leading to even smoother and more efficient rotation.
Specifications
| Item | Model | TSR | TLR |
|---|---|---|---|
| Applicable tube size | φ4 | φ6, φ8, φ10, φ12 | |
| Media | Air | ||
| Maximum operating pressure | MPa [psi] | 0.9 MPa [131 psi] | 0.9 MPa [131 psi] |
| Operating vacuum pressure | kPa [inHg] | −100 kPa [−29.54 inHg] | −100 kPa [−29.54 inHg] |
| Operating temperature range | °C [°F] | 0~60°C [32~140°F] | 0~60°C [32~140°F] |
| Recommended tube | Nylon tube, urethane tube | ||
| Allowable rotating speed | r.p.m. | 500 | 400, 300, 250 |
| Color of release ring | Black | ||
| Sales unit | 1 pc. | ||
