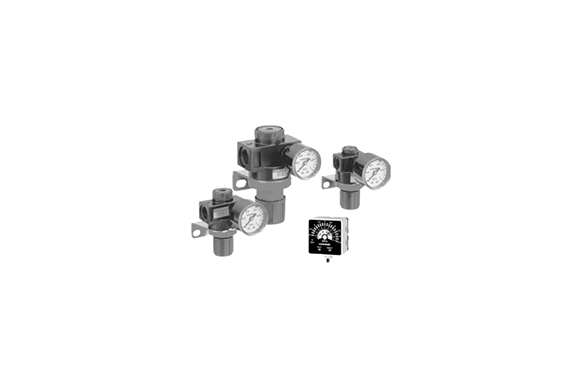

The compact design of this system ensures stable pressure regulation, while simultaneously offering a large flow rate. Additionally, the push-lock type regulator knob provides a smooth and effortless pressure adjustment, making the process more efficient. Equipped with a pressure gauge that features a preset marker, this unit ensures accurate readings and easy adjustments. Moreover, the series includes models designed for low pressure applications, as well as those with a built-in check mechanism for added functionality. This range of options offers flexibility to meet various operational requirements.
Specifications
| Item | Model | R150 | R300 | R600 |
|---|---|---|---|---|
| Media | Rc | 1/8, 1/4 | 1/4, 3/8, 1/2 | |
| Pressure setting range | MPa [psi] | Standard and built-in check mechanism types: 0.05~0.83 [7~120], Low pressure type: 0.05~0.25 [7~36] | Standard and built-in check mechanism types: 0.05~0.83 [7~120], Low pressure type: 0.05~0.25 [7~36] | Standard and built-in check mechanism types: 0.05~0.83 [7~120], Low pressure type: 0.05~0.25 [7~36] |
| Maximum operating pressure | MPa [psi] | 0.93 [135] | 0.93 [135] | 0.93 [135] |
| Proof pressure | MPa [psi] | 1.47 [213] | 1.47 [213] | 1.47 [213] |
| Operating temperature range (atmosphere and media) | °C [°F] | 5~60 [41~140] | 5~60 [41~140] | 5~60 [41~140] |
| Lubrication | Not required | Not required | Not required | |
| Mass (with pressure gauge) | kg [lb] | 0.20 [0.44] | 0.23 [0.51] | 0.32 [0.71] |
| Materials | Standard and built-in check mechanism types: Body | Aluminum die-casting | Zinc die-casting | Aluminum die-casting |
| Standard attachments | Low pressure type | Bracket and pressure gauge G1-40 (φ40×1MPa [145psi]) | Bracket and pressure gauge G1-40 (φ40×1MPa [145psi]) | Bracket and pressure gauge G3-40 (φ40×0.3MPa [44psi]) |
