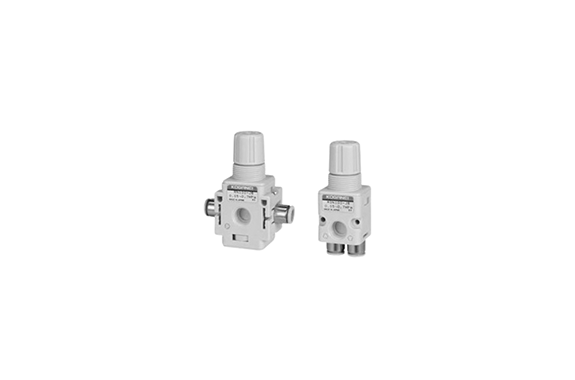

Koganei Regulators Side, Bottom Piping Regulators
Manufacturer: KOGANEI CORPORATION
Features
Compact and lightweight air filters, regulators, and filter regulators deliver dependable performance across many pneumatic systems. Additionally, the regulator uses a diaphragm to ensure consistent and accurate regulating performance, and it conforms to non-grease specifications for cleaner operation. Moreover, installation remains quick and easy at airline ends, which simplifies setup for both new and existing applications. Fittings come supplied with the product as standard, so users can connect the unit without needing additional parts. Furthermore, these standard products also function as non-ion specification options, excluding the pressure gauge, which increases compatibility and supports a wider range of operating environments.
Specifications
| Item | Model | Standard RN100 / RDN100 / RN110 / RDN110 | Low pressure RN101 / RDN101 / RN111 / RDN111 |
|---|---|---|---|
| Media | Air | ||
| Piping connection fitting | φ4 mm [0.157 in.], φ6 mm [0.236 in.], 1/8 in., or 1/4 in. | 1/8 in. or 1/4 in. | |
| Pressure setting range | MPa [psi] | 0.05～0.7 [7～102] | 0.05～0.25 [7～36] |
| Maximum operating pressure | MPa [psi] | 1 [145] | |
| Proof pressure | MPa [psi] | 1.5 [218] | |
| Operating temperature range (atmosphere and media) | °C [°F] | 5～50 [41～122] | |
| Lubrication | Prohibited | ||
| Mass | g [oz] | Body: 41 [1.45] / Option: Pressure gauge: 15 [0.5], Mounting ring: 12 [0.42], Bracket: 5.5 [0.194] | Body: 33 [1.16] |
| Body: 41 [1.45] | Body: 33 [1.16] | ||
| Materials | Body | Plastic | Plastic |
| Bonnet | Plastic | Plastic | |
| Plug | Plastic | Plastic | |
| Diaphragm | Synthetic rubber | Synthetic rubber | |
| O-ring | Synthetic rubber | Synthetic rubber | |
| Valve | Synthetic rubber and aluminum alloy | Synthetic rubber and aluminum alloy | |
| Regulating spring | Piano wire (zinc plated) | ||
