KOGANEI CORPORATION

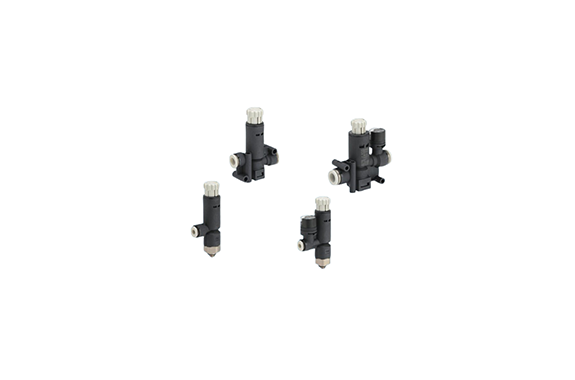

Koganei Regulators With Quick Fittings Push Lock Type
Manufacturer: KOGANEI CORPORATION
Features
The push lock knob allows one-handed pressure setting and adjusting operations, ensuring fast and simple use. Additionally, it prevents lock nuts from loosening due to mechanical vibrations, which improves long-term stability. Moreover, the new configuration delivers nearly 1.3 times the flow rate of previous products, and it reduces pressure fluctuation margins to support steady and reliable pressure supply. The internal check mechanism lets users install the product between solenoid valves and the regulator for smoother, safer performance. Furthermore, the relief mechanism supports easy device adjustments and enhances operational control. A pressure gauge is also included in the lineup, and users can rotate it freely to suit any installation orientation.
Specifications
| Item | Model | RTLP□□□ (Elbow) | RTUP□□□ (Union) |
|---|---|---|---|
| Medium | Air (Cannot be used for vacuum) | ||
| Operating pressure range | 0 to 1.0 MPa [0 to 145 psi] | ||
| Pressure range settings | 0.1 to 0.8 MPa [15 to 116 psi] | ||
| Pressure range display | 0 to 0.8 MPa [0 to 116 psi] | ||
| Accuracy (pressure gauge) | ±5% (full scale) | ||
| Operating temperature range | 0 to 60°C [32 to 140°F] (non-freezing) | ||
| Recommended tubes | Nylon or urethane tubes | ||
| Sales unit | 1 pc. | ||
