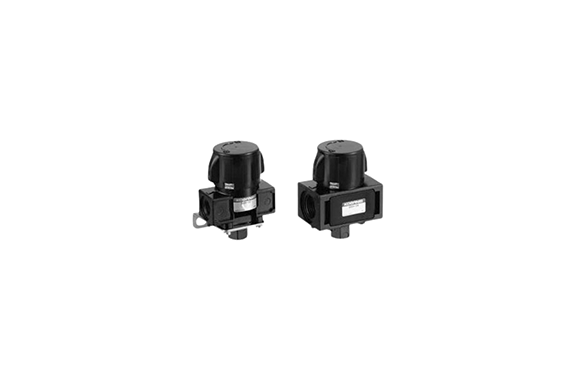

Koganei Residual Pressure Exhaust Valves 300V, 600V
Manufacturer: KOGANEI CORPORATION
Features
The absence of a neutral position ensures safe and reliable switching between air supply and exhaust. Additionally, the exhaust port is equipped with an orifice that restrains sudden exhaust, enhancing system stability and safety.
Specifications
| Item | Model | 300V-01 | 300V-02 | 300V-03 | 600V-04 | ||
|---|---|---|---|---|---|---|---|
| Media | Air | ||||||
| Operation type | Manual knob type | ||||||
| Number of positions, number of ports | 2 positions, 3 ports | 2 positions, 3 ports | 2 positions, 3 ports | 2 positions, 3 ports | |||
| Effective area | mm² (Cv) | P, A | 15 [0.83] | P, A | 27 [1.50] | P, A | 55 [3.06] |
| Port size | Rc | 1/8 | 1/4 | 1/4 | 3/8 | ||
| Operating pressure range | MPa [psi] | 0~0.9 [0~131] | 0~0.9 [0~131] | 0~0.9 [0~131] | 0~0.9 [0~131] | ||
| Proof pressure | MPa [psi] | 1.32 [191] | 1.32 [191] | 1.32 [191] | 1.32 [191] | ||
| Operating temperature range (atmosphere and media) | °C [°F] | 5~60 [41~140] | 5~60 [41~140] | 5~60 [41~140] | 5~60 [41~140] | ||
| Mounting direction | Any | ||||||
| Lubrication | Not required | ||||||
| Mass | kg [lb.] | 0.22 [0.49] | 0.21 [0.46] | 0.25 [0.55] | 0.25 [0.55] | ||
| Materials | Body | Aluminum die-casting | Aluminum die-casting | Aluminum die-casting | Aluminum die-casting | ||
| Knob | Plastic | Plastic | Plastic | Plastic | |||
| Knob operation force | N·cm [in·lbf] | 69 [6.1] | 69 [6.1] | 69 [6.1] | 69 [6.1] | ||
| Knob operation angle | ° | 90° | 90° | 90° | 90° | ||
