Manufacturer: KOGANEI CORPORATION

Features

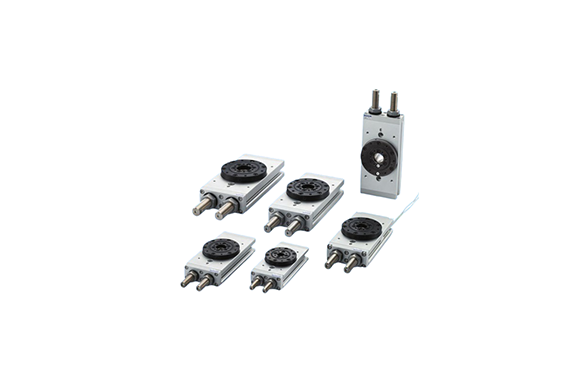

High Torque and Versatile Applications
This rotary actuator offers a variety of torque types, including 1.0, 2.0, 2.5, 3.0, 5.0, and 7.0 N·m (0.74, 1.48, 1.84, 2.21, 3.59, and 5.16 ft·lbf). As a result, it adapts easily to different industrial needs. Moreover, it operates efficiently at an air pressure of 0.5 MPa (73 psi), ensuring reliable performance in a broad range of applications.

Precision and Rigidity
The actuator uses cross roller bearings to achieve exceptional precision and rigidity. Consequently, it delivers smooth operation at speeds ranging from 0.2 to 7.0 s/90°, providing consistent and high-performance results in demanding environments.

Effortless Installation and Versatility
Thanks to its design, the workpiece can be directly mounted to the bearing, simplifying the setup process. Additionally, the actuator comes with optional mounting parts, offering flexibility to accommodate various mounting formats and setup configurations.

Compact Design for Space-Saving
Due to its thin construction, this actuator can easily fit into narrow spaces, making it perfect for compact setups. Furthermore, the large diameter hollow shaft allows for easy piping and wiring, reducing clutter and improving installation efficiency.

Enhanced Durability with Advanced Features
The actuator is equipped with a newly developed pressure-resistant shock absorber. As a result, it provides smooth control at the end of the stroke, minimizing vibrations and ensuring a longer lifespan, even in dynamic environments.

Specifications

Item	RAF10-180-	RAF20-180-	RAF25-180-	RAF30-180-	RAF50-180-	RAF70-180-
Operating type	Double acting double piston type (Rack and pinion type)	Double acting double piston type (Rack and pinion type)	Double acting double piston type (Rack and pinion type)	Double acting double piston type (Rack and pinion type)	Double acting double piston type (Rack and pinion type)	Double acting double piston type (Rack and pinion type)
Effective torque (at 0.5 MPa [73 psi])¹ N·m [ft·lbf]	0.96 [0.708]	2.13 [1.571]	2.34 [1.726]	3.57 [2.633]	4.70 [3.467]	6.65 [4.905]
Medium	Air
Operating pressure range MPa [psi]	0.2〜0.7 [29〜102]	0.2〜0.7 [29〜102]	0.2〜0.7 [29〜102]	0.2〜0.7 [29〜102]	0.2〜0.7 [29〜102]	0.2〜0.7 [29〜102]
Proof pressure MPa [psi]	1.05 [152]	1.05 [152]	1.05 [152]	1.05 [152]	1.05 [152]	1.05 [152]
Operating temperature range °C [°F]	0〜60 [32〜140]	0〜60 [32〜140]	0〜60 [32〜140]	0〜60 [32〜140]	0〜60 [32〜140]	0〜60 [32〜140]
Cushion	With shock absorber	With shock absorber	With shock absorber	With shock absorber	With shock absorber	With shock absorber
Swing angle range	−5°〜185°	−5°〜185°	−5°〜185°	−5°〜185°	−5°〜185°	−5°〜185°
Swing angle adjustment range² (only with shock absorber)	Clockwise rotation end: ±5° referred to 0° position/Counterclockwise rotation end: ±5° referred to 90° position	Clockwise rotation end: ±5° referred to 0° position/Counterclockwise rotation end: ±5° referred to 90° position	Clockwise rotation end: ±5° referred to 0° position/Counterclockwise rotation end: ±5° referred to 90° position	Clockwise rotation end: ±5° referred to 0° position/Counterclockwise rotation end: ±5° referred to 90° position	Clockwise rotation end: ±5° referred to 0° position/Counterclockwise rotation end: ±5° referred to 90° position	Clockwise rotation end: ±5° referred to 0° position/Counterclockwise rotation end: ±5° referred to 90° position
Swing time adjustment range³ s/90°	0.5〜7.0	0.5〜7.0	0.5〜7.0	0.5〜7.0	0.5〜7.0	0.5〜7.0
Bearing static thrust load rating⁴ N [lbf]	8700 [1956]	12380 [2783]	20720 [4658]	24900 [5415]	25680 [5773]	47500 [10678]
Lubrication	Not required
Port size	M5 × 0.8	M5 × 0.8	M5 × 0.8	Rc1/8	Rc1/8	Rc1/8
Cylinder bore size mm [in.]	φ12 [0.472]	φ16 [0.630]	φ20 [0.787]	φ25 [0.984]	φ30 [1.181]	φ40 [1.575]
Through hole diameter mm [in.]	φ4 [0.157]	φ5 [0.197]	φ6 [0.236]	φ8 [0.315]	φ10 [0.394]	φ12 [0.472]
Mass g [oz.]	632 [22.29]	953 [33.64]	1310 [46.21]	1600 [56.44]	2500 [88.18]	3400 [119.03]
