KOGANEI CORPORATION

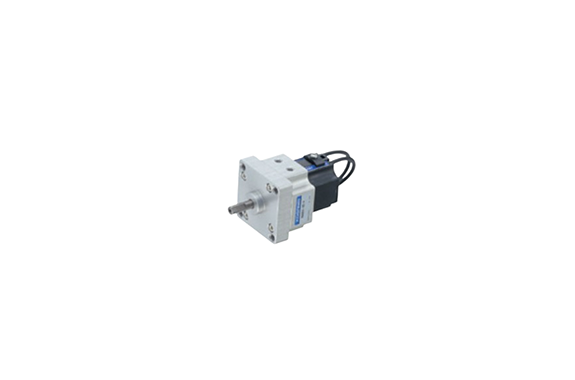

Koganei Rotary Actuators Single Vane Sensor Equipped Type RAN
Manufacturer: KOGANEI CORPORATION
Features
Space-Saving and High Torque
The new design enhances ease of use by offering a high-performance, compact rotary actuator that delivers both space savings and high torque. This actuator is ideal for applications where both space efficiency and powerful performance are needed.
Durable and Reliable Design
The actuator features an aluminum alloy body, which provides a lightweight yet durable structure. Additionally, precision machining and special surface treatment of the inner surface ensure optimal performance. Furthermore, specially shaped seals and bearings using oil-impregnated metal reduce friction, resulting in a non-lubricating, long-life actuator with extremely low air leakage.
Versatile and Flexible Options
The series is categorized according to nominal torque. Moreover, the range also includes units with compact sensor switches, which significantly increase the actuator’s application flexibility. As a result, you can design and implement a variety of devices to suit different industrial needs.
Specifications
| Item | Basic Model | ||||
|---|---|---|---|---|---|
| RAN1 | RAN3 | RAN8 | RAN20 | RAN50 | |
| Operation type | Double acting single vane type | ||||
| Effective torque1 N·m [ft·lbf] | 0.118 [0.087] | 0.294 [0.217] | 0.785 [0.579] | 1.961 [1.374] | 5.197 [3.833] |
| Swing angle2 (Tolerance ±3°) | 90°, 100°, 180°, (190°, 270° made to order) | 90°, 100°, 180°, (190°, 270° made to order) | 90°, 100°, 180°, (190°, 270° made to order) | 90°, 100°, 180°, (190°, 270° made to order) | 90°, 100°, 180°, (190°, 270° made to order) |
| Media | Air | ||||
| Port size | M5 × 0.8 | M5 × 0.8 | M5 × 0.8 | Rc1/8 | Rc1/8 |
| Rod diameter mm [in.] | 4 [0.157] | 5 [0.197] | 6 [0.236] | 8 [0.315] | 12 [0.472] |
| Operating pressure range MPa [psi] | 0.25〜0.7 [36〜102] | 0.2〜0.7 [29〜102] | 0.2〜0.7 [29〜102] | 0.2〜0.7 [29〜102] | 0.2〜0.7 [29〜102] |
| Proof pressure MPa [psi] | 1.03 [149] | 1.03 [149] | 1.03 [149] | 1.03 [149] | 1.03 [149] |
| Operating temperature range °C [°F] | 5〜60 [41〜140] | 5〜60 [41〜140] | 5〜60 [41〜140] | 5〜60 [41〜140] | 5〜60 [41〜140] |
| Internal capacity3 cm3 [in3] | 2.04 [0.124] | 4.48 [0.273] | 8.25 [0.504] | 19.79 [1.21] | 56.47 [3.44] |
| Allowable energy J [ft·lbf] | 0.0004 [0.003] | 0.0010 [0.007] | 0.002 [0.015] | 0.005 [0.044] | 0.008 [0.059] |
| Allowable radial load N [lbf] | 19.6 [4.41] | 28.7 [6.45] | 37.6 [8.46] | 50.0 [11.2] | 98.1 [22.1] |
| Allowable thrust load4 N [lbf] | 1.1 [0.25] | 3.4 [0.76] | 5.6 [1.26] | 8.3 [1.86] | 18.7 [4.19] |
| Lubrication | Not required | ||||
| Cushion | None | ||||
| Sensor switch5 | The sensor switch can be installed on type RANS- Applicable sensor switch: ZC1301, ZC1532, CS5T3, CS11T4 | ||||
