KOGANEI CORPORATION

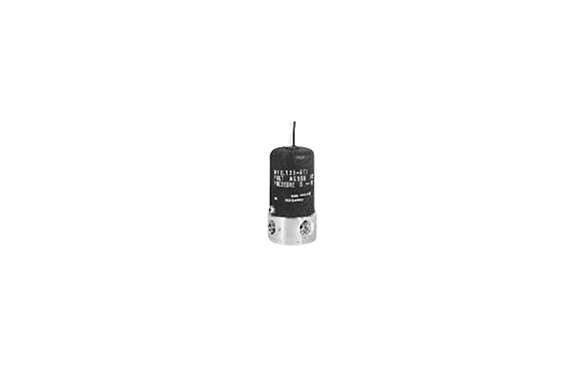

Koganei Round Type Solenoid Valves 125 Series Direct Acting 4-Port
Manufacturer: KOGANEI CORPORATION
Features
High reliability comes from a long track record of success, and it consistently supports dependable performance. Furthermore, the original poppet system and the diaphragm-and-poppet design work together to virtually eliminate air leaks. As a result, the valve maintains stable sealing and continues to operate efficiently across demanding applications.
Specifications
Item Model | 125-4E1 | 125-4SE2 |
| Media | Air | |
| Operation type | Direct acting type | |
| Effective area (Cv) mm² | 3.5 (0.17) | |
| Port size | Rc 1/4 | |
| Lubrication | Required (Turbine Oil Class 1 (ISO VG32) or equivalent) | |
| Operating pressure range MPa (kgf/cm²) [psi] | 0~0.9 (0~9.2) [0~131] | |
| Proof pressure MPa (kgf/cm²) [psi] | 1.35 (13.8) [196] | |
| Response time ON/OFF ms | ON 35 | |
| OFF 30 | ||
| Maximum operating frequency Hz | 5 | |
| Minimum time to energize for self holding ms | — | 50 |
| Operating temperature range (atmosphere and media) °C [°F] | 0~60 [32~140] | |
| Mounting direction | Any | |
| Mass kg [lb.] | 0.4 [0.88] | |
