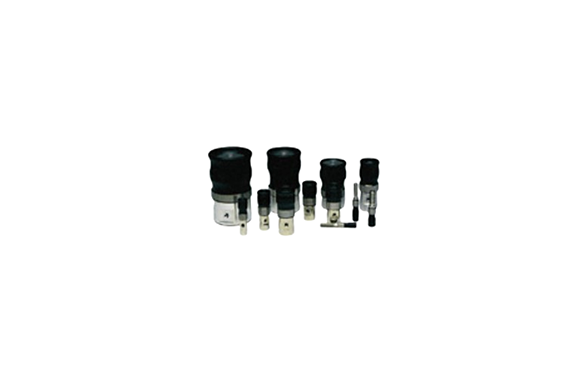

Koganei Rubber Hands Pick Type

Manufacturer: KOGANEI CORPORATION

Features

This unit features a large, hollow body inside a rubber cylinder. As the cylinder expands, it forms a donut shape. This design is used to grip and hold the inner diameter of the workpiece. The wide area of contact ensures a secure and stable grip.

Additionally, the rubber cylinder provides a gentle yet firm hold, making it suitable for a variety of workpieces. As a result, it enhances the versatility and precision of handling applications.

RBP RCA

The rubber portion is reinforced with radial nylon cords. As a result, this type is ideal for holding or handling workpieces with a small to medium inner diameter, or those with medium weight. This reinforcement ensures durability and reliable performance in moderate handling applications.

RBP TCA

The rubber portion is reinforced with bias nylon cords. Consequently, this type is suited for handling workpieces with a large inner diameter or heavy weight. The bias reinforcement offers superior strength for demanding tasks that require extra stability.

Specifications

Order codes	Applicable inner diameter of the workpiece mm [in.]	Recommended load mass g [oz.]	Media	Maximum operating air pressure MPa [psi]	Proof pressure MPa [psi]	Operating temperature range °C [°F]	Lubrication	Construction of the rubber portion	Body materials	Product mass g [oz.]
RBP006RCA	8.5～10 [0.335～0.394]	300 [10.6]	Air	0.40 [58]	0.60 [87]	0～50 [32～122]	Prohibited (It is not possible to use under mineral oil atmosphere, etc.)	Radial cords construction (Chloroprene rubber)	Stainless steel	8 [0.28]
RBP007RCA	10～12 [0.394～0.472]	300 [10.6]	Air	0.40 [58]	0.60 [87]	0～50 [32～122]	Prohibited (It is not possible to use under mineral oil atmosphere, etc.)	Radial cords construction (Chloroprene rubber)	Free-cutting steel (Plated)	12 [0.42]
RBP009RCA	12～17 [0.472～0.669]	1300 [45.9]	Air	0.40 [58]	0.60 [87]	0～50 [32～122]	Prohibited (It is not possible to use under mineral oil atmosphere, etc.)	Radial cords construction (Chloroprene rubber)	Free-cutting steel (Plated)	17 [0.60]
RBP010RCA	16～21 [0.630～0.827]	2500 [88.2]	Air	0.40 [58]	0.60 [87]	0～50 [32～122]	Prohibited (It is not possible to use under mineral oil atmosphere, etc.)	Radial cords construction (Chloroprene rubber)	Free-cutting steel (Plated)	28 [0.99]
RBP017RCA	24～32 [0.945～1.261]	3000 [105.8]	Air	0.50 [73]	0.75 [109]	0～50 [32～122]	Prohibited (It is not possible to use under mineral oil atmosphere, etc.)	Radial cords construction (Chloroprene rubber)	Free-cutting steel (Plated)	60 [2.12]
RBP019RCA	28～36 [1.102～1.417]	3500 [123.5]	Air	0.50 [73]	0.75 [109]	0～50 [32～122]	Prohibited (It is not possible to use under mineral oil atmosphere, etc.)	Radial cords construction (Chloroprene rubber)	Free-cutting steel (Plated)	85 [3.00]
RBP022RCA	36～50 [1.417～1.969]	5000 [211.6]	Air	0.50 [73]	0.75 [109]	0～50 [32～122]	Prohibited (It is not possible to use under mineral oil atmosphere, etc.)	Radial cords construction (Chloroprene rubber)	Free-cutting steel (Plated)	105 [3.70]
RBP025RCA	50～63 [1.969～2.480]	7000 [246.9]	Air	0.50 [73]	0.75 [109]	0～50 [32～122]	Prohibited (It is not possible to use under mineral oil atmosphere, etc.)	Radial cords construction (Chloroprene rubber)	Free-cutting steel (Plated)	160 [5.64]
RBP035TCA	63～80 [2.480～3.150]	12000 [423.3]	Air	0.50 [73]	0.75 [109]	0～50 [32～122]	Prohibited (It is not possible to use under mineral oil atmosphere, etc.)	Bias cords construction (Chloroprene rubber)	Aluminum	245 [8.64]
RBP045TCA	80～100 [3.150～3.937]	22000 [776.0]	Air	0.50 [73]	0.75 [109]	0～50 [32～122]	Prohibited (It is not possible to use under mineral oil atmosphere, etc.)	Bias cords construction (Chloroprene rubber)	Aluminum	370 [13.05]
RBP055TCA	100～125 [3.937～4.921]	28000 [987.7]	Air	0.50 [73]	0.75 [109]	0～50 [32～122]	Prohibited (It is not possible to use under mineral oil atmosphere, etc.)	Bias cords construction (Chloroprene rubber)	Aluminum	610 [21.52]
