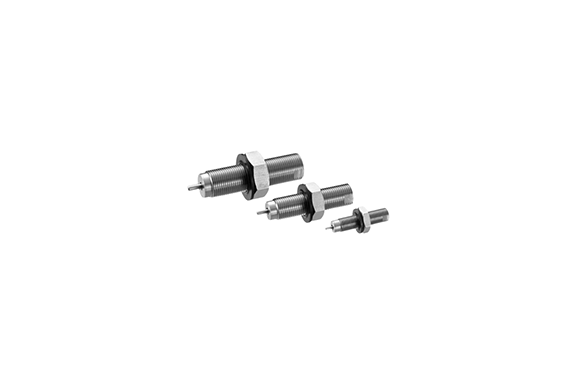

Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Model | KSHK10 × 5-01 | KSHK10 × 5-02 | KSHK12 × 6-01 | KSHK12 × 6-02 |
|---|
| Maximum absorption capacity | J [ft·lbf] | 0.4 [0.295] | 0.5 [0.369] | 0.8 [0.590] | 0.6 [0.443] |
| Absorption stroke | mm [in] | 5 [0.197] | 5 [0.197] | 6 [0.236] | 6 [0.236] |
| Maximum impact speed | m/s [ft/sec] | 0.5 [1.640] | 0.8 [2.624] | 0.5 [1.640] | 0.8 [2.624] |
| Maximum operating frequency | cycle/min | 30 |
| Operating pressure range | MPa [psi] | 0 ~ 0.7 [0 ~ 102] |
| Maximum absorption per unit time | J/min | 8 | 12 | 12 | 12 |
| Spring return force | N [lbf] | 8.3 | 8.3 | 14.5 | 14.5 |
| Angle variation | | 1° or less |
| Operating temperature range | °C [°F] | 0 ~ 60 [32 ~ 140] |
| Item | Model | KSHK14 × 7-01 | KSHK14 × 7-02 | KSHK16 × 8-01 | KSHK16 × 8-02 |
|---|
| Maximum absorption capacity | J [ft·lbf] | 1.0 [0.738] | 1.0 [0.738] | 1.6 [1.180] | 1.3 [0.959] |
| Absorption stroke | mm [in] | 7 [0.276] | 7 [0.276] | 8 [0.315] | 8 [0.315] |
| Maximum impact speed | m/s [ft/sec] | 0.5 [1.640] | 0.8 [2.624] | 0.5 [1.640] | 0.8 [2.624] |
| Maximum operating frequency | cycle/min | 30 |
| Operating pressure range | MPa [psi] | 0 ~ 0.7 [0 ~ 102] |
| Maximum absorption per unit time | J/min | 18 | 18 | 26 | 26 |
| Spring return force | N [lbf] | 13.0 [2.923] | 13.0 [2.923] | 13.5 [3.035] | 13.5 [3.035] |
| Angle variation | | 1° or less |
| Operating temperature range | °C [°F] | 0 ~ 60 [32 ~ 140] |
| Item | Model | KSHK18 × 9-01 | KSHK18 × 9-02 | KSHK20 × 10-01 | KSHK20 × 10-02 |
|---|
| Maximum absorption capacity | J [ft·lbf] | 2.5 [1.844] | 2.9 [2.139] | 5.0 [3.688] | 4.8 [3.540] |
| Absorption stroke | mm [in] | 9 [0.354] | 9 [0.354] | 10 [0.394] | 10 [0.394] |
| Maximum impact speed | m/s [ft/sec] | 0.5 [1.640] | 0.8 [2.624] | 0.5 [1.640] | 0.8 [2.624] |
| Maximum operating frequency | cycle/min | 30 |
| Operating pressure range | MPa [psi] | 0 ~ 0.7 [0 ~ 102] |
| Maximum absorption per unit time | J/min | 50 | 50 | 90 | 90 |
| Spring return force | N [lbf] | 27.0 [6.070] | 27.0 [6.070] | 29.0 [6.519] | 29.0 [6.519] |
| Angle variation | | 1° or less |
| Operating temperature range | °C [°F] | 0 ~ 60 [32 ~ 140] |
