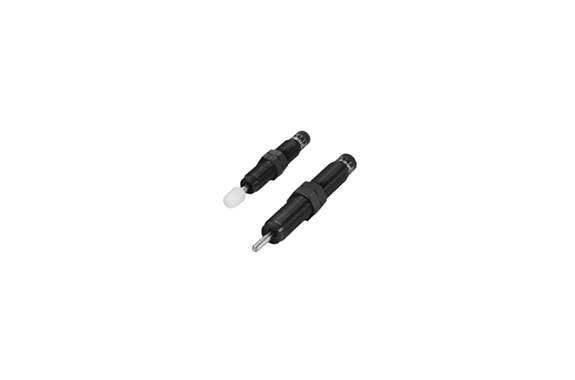

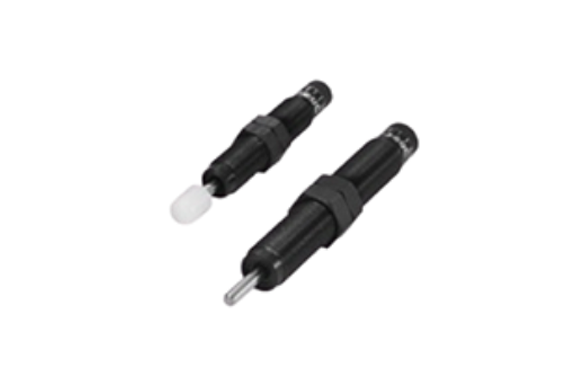

Koganei Shock Absorbers Adjustable Absorption Capacity Type KSHE, KSH Series
Manufacturer: KOGANEI CORPORATION
Features
Enhance production efficiency with our advanced linear and multi-orifice shock absorbers. Because these units provide effective shock absorption, you can significantly shorten cycle times. Furthermore, the adjustable linear orifice allows for fine-tuning based on impact speed. This design actively prevents equipment damage. Additionally, the silicon-free construction ensures low particle generation to meet JIS ISO Class 5 standards. Since our products offer over 3 million operations, they deliver long-term reliability. Moreover, these components comply with H1 food equipment specifications. Consequently, you can rely on them for high-speed, hygienic environments.
Specifications
| Item / Model | Multi orifice type | Single orifice type | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| KSHE5×8 | KSHE6×10 | KSHE8×15 | KSHE10×20 | KSHE12×22 | KSH5×8 | KSH6×10 | KSH8×10 | KSH10×15 | KSH12×22 | |
| Maximum absorption J [ft·lbf] | 1.5 [1.11] | 3.0 [2.21] | 9.8 [7.23] | 14.7 [10.84] | 29.4 [21.69] | 1.5 [1.11] | 3.0 [2.21] | 5.9 [4.35] | 9.8 [7.23] | 24.5 [18.07] |
| Absorbing stroke mm [in.] | 8 [0.31] | 10 [0.39] | 15 [0.59] | 20 [0.79] | 22 [0.87] | 8 [0.31] | 10 [0.39] | 10 [0.39] | 15 [0.59] | 22 [0.87] |
| Maximum impact speed m/s [ft./sec.] | 1.5 [4.92] | 1.0 [3.28] | ||||||||
| Maximum operating frequency cycle/min | 60 | 30 | ||||||||
| Spring return force N [lbf.] | 5.6 [1.26] | 9.2 [2.07] | 10.7 [2.41] | 14.4 [3.24] | 16.3 [3.66] | 5.6 [1.26] | 9.2 [2.07] | 15.7 [3.53] | 16.6 [3.73] | 37.1 [8.34] |
| Angle variation | 3° or less | 3° or less | ||||||||
| Operating temperature range °C [°F] | 0 ~ 60 [32 ~ 140] | 0 ~ 60 [32 ~ 140] | ||||||||
