KOGANEI CORPORATION

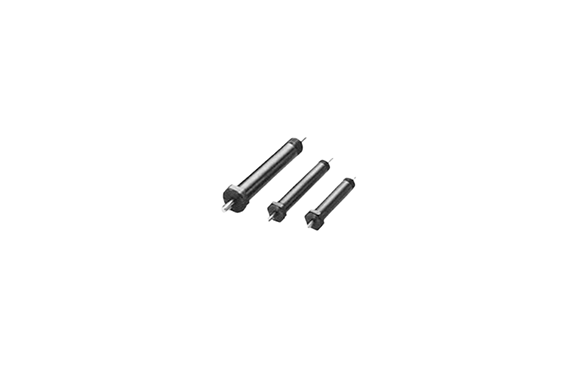

Koganei Shock Absorbers For Magnet Type Rodless Cylinders MRG
Manufacturer: KOGANEI CORPORATION
Features
Enhance your equipment’s performance with our specialized shock absorbers. Because these units offer specialized integration, you can achieve seamless compatibility with the MRG magnet type rodless cylinder. Furthermore, this targeted design ensures stable operation during high-speed movements. Consequently, you can maintain peak efficiency without risking mechanical failure. Moreover, this specific absorber model streamlines your assembly process. In addition, the compact build fits perfectly into modern industrial setups. Therefore, you can rely on this component for consistent and long-lasting results.
Specifications
| Model Item | KSHDM 5×6 | KSHDM 5×8 | KSHDM 5×10 | KSHDM 6×10 | KSHDM 8×12 | KSHDM 10×15 | KSHDM 12×18 | |
|---|---|---|---|---|---|---|---|---|
| Applicable cylinder | MRGH6 | MRGH10 | MRG□16 | MRG□20 | MRG□25 | MRG□32 | MRG□40 | |
| Maximum absorption | J [ft·lbf] | 0.5 [0.37] | 1.0 [0.74] | 2.5 [1.84] | 3.9 [2.88] | 5.9 [4.35] | 13.3 [9.81] | 26.5 [19.55] |
| Absorbing stroke | mm [in.] | 6 [0.24] | 8 [0.31] | 10 [0.39] | 10 [0.39] | 12 [0.47] | 15 [0.59] | 18 [0.71] |
| Maximum impact speed | mm/s [ft./sec.] | 800 [2.6] | ||||||
| Maximum operating frequency | cycle/min | 60 | ||||||
| Spring return forceNote | N [lbf.] | 4.9 [1.10] | 7.8 [1.75] | 6.9 [1.55] | 6.9 [1.55] | 19.6 [4.41] | 14.7 [3.30] | 16.7 [3.75] |
| Angle variation | 2° or less | |||||||
| Operating temperature range °C [°F] | 0 ~ 60 [32 ~ 140] | |||||||
