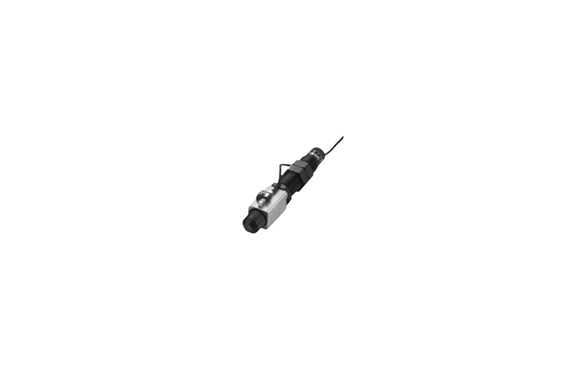

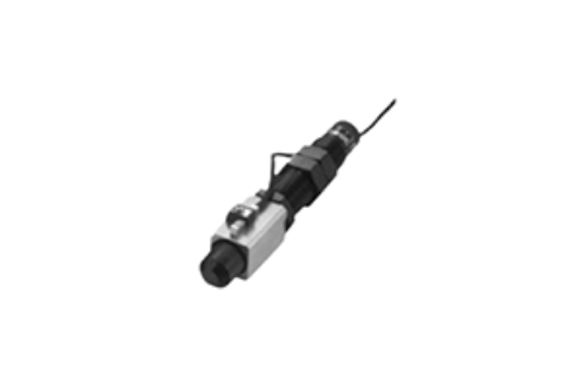

Koganei Shock Absorbers With Sensor Switch Adjustable Absorption Capacity Type KSHES Series
Manufacturer: KOGANEI CORPORATION
Features
Boost your production efficiency with our advanced linear and multi-orifice shock absorbers. Because these units provide effective shock and noise absorption, you can significantly shorten cycle times. Furthermore, the adjustable linear orifice allows for fine-tuning based on impact speed and load. This design actively prevents equipment damage while improving processing accuracy. Additionally, the silicon-free construction ensures low particle generation to meet JIS ISO Class 5 cleanliness standards. Since our products offer more than 3 million operations and comply with H1 food equipment specifications, you can rely on them for high-speed, hygienic environments.
Specifications
| Item / Model | KSHES8×15 | KSHES10×20 | KSHES12×22 |
| Maximum absorption J [ft·lbf] | 9.8 [7.23] | 14.7 [10.84] | 29.4 [21.69] |
| Absorbing stroke mm [in.] | 14.5 [0.571] | 19.5 [0.768] | 21.5 [0.846] |
| Maximum impact speed m/s [ft./sec.] | 1.5 [4.92] | ||
| Maximum operating frequency cycle/min | 60 | ||
| Spring return force N [lbf.] | 10.7 [2.41] | 14.4 [3.24] | 16.3 [3.66] |
