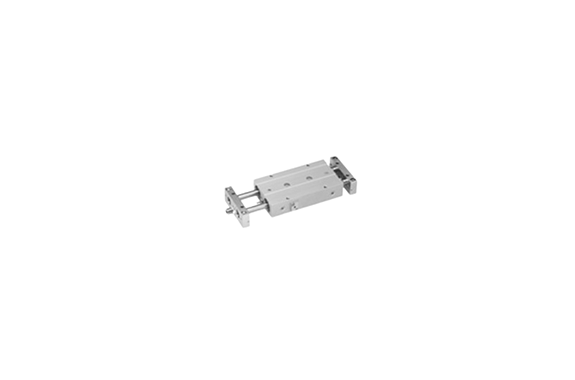

These space-saving, high-precision, advanced-performance actuators combine 2 air cylinders within a compact thin-body pneumatic device.
The flat, square shape achieves twice the cylinder thrust, for maximum utilization of the limited space.
In addition, the cylinder’s piston rods act as guides to improve non-rotating accuracy and positioning accuracy, demonstrating great effectiveness in reducing design hours and costs for mechanical devices
Specifications
| Item | Bore size mm [in.] | 16 [0.630] | 25 [0.984] |
|---|---|---|---|
| Operation type | Double acting, double piston type | ||
| Media | Air | ||
| Mounting type | Fixed table type, Fixed end plate type, Fixed rail-on plate type | ||
| Operating pressure range MPa [psi.] | Fixed table type | 0.2～0.9 [29～131] | 0.2～0.9 [29～131] |
| Fixed rail-on plate type | 0.2～0.9 [29～131] | 0.2～0.9 [29～131] | |
| Proof pressure MPa [psi.] | 1.32 [191] | ||
| Operating temperature range °C [°F] | 0～60 [32～140] | ||
| Operating speed range mm/s [in./sec.] | Standard | 50～400 [2.0～15.7] | |
| With shock absorber | 50～400 [2.0～15.7] | ||
| Cushion | Shock absorber (Optional) | ||
| Lubrication | Not required | ||
| Non-rotating accuracy | ±0.05° | ±0.02° | |
| Stroke adjusting range mm [in.] | ±5 [±0.197] (Opposite side of lock mechanism only) | ||
| Maximum holding force (at end keep) N [lbf] | 10 [22] | 24 [53] | |
| Backlash (at end keep) mm [in.] | 1.5 [0.059] or less | 1.5 [0.059] or less | |
| Maximum loads N [lbf.] | Fixed table type | 14.7 [3.30] | 24.5 [5.51] |
| Fixed end plate type | 29.4 [6.61] | 49 [11.0] | |
| Fixed rail-on plate type | 98.1 [22.05] | ||
| Port size | M5 X 0.8 | Rc1/8 | |
