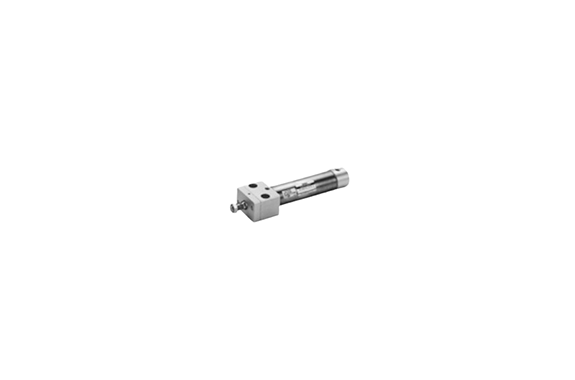

Koganei Slim Cylinders Double Acting Block End Keep Type
Manufacturer: KOGANEI CORPORATION
Features
The cylinder bore ranges from Φ20 to 40 mm [0.787 to 1.575 in], designed to meet cleanroom specifications. This slim cylinder features a block cylinder end keep, ensuring durability and smooth operation. Additionally, the double-acting type provides reliable performance, making it an excellent choice for applications requiring both efficiency and space-saving design. As a result, this cylinder is well-suited for environments that demand high performance in a compact form.
Specifications
| Item | Bore size mm [in.] | |||
|---|---|---|---|---|
| 20 [0.787] | 25 [0.984] | 32 [1.260] | 40 [1.575] | |
| Operating type | Double acting type, with head side stroke end keep mechanism | |||
| Media | Air | |||
| Mounting type | Side mount | |||
| Operating pressure range | 0.1～0.9 MPa [15～131 psi] | 0.1～0.9 MPa [15～131 psi] | 0.1～0.9 MPa [15～131 psi] | 0.1～0.9 MPa [15～131 psi] |
| Proof pressure | 1.32 MPa [191 psi] | 1.32 MPa [191 psi] | 1.32 MPa [191 psi] | 1.32 MPa [191 psi] |
| Operating temperature range | 0～60°C [32～140°F] | 0～60°C [32～140°F] | 0～60°C [32～140°F] | 0～60°C [32～140°F] |
| Operating speed range | 50～300 mm/s [2.0～11.8 in./sec] | 50～300 mm/s [2.0～11.8 in./sec] | 50～300 mm/s [2.0～11.8 in./sec] | 50～300 mm/s [2.0～11.8 in./sec] |
| Cushion | Fixed type (Rubber bumper) | |||
| Lubrication | Not required | |||
| Maximum holding force (at end keep) | 194.2 N [43.66 lbf] | 303 N [68.11 lbf] | 496.2 N [111.5 lbf] | 775.7 N [174.4 lbf] |
| Backlash (at end keep) | 1.4 mm [0.055 in.] MAX. | 1.4 mm [0.055 in.] MAX. | 1.6 mm [0.063 in.] MAX. | 1.6 mm [0.063 in.] MAX. |
| Port size | Rc1/8 | Rc1/8 | Rc1/8 | Rc1/8 |
