KOGANEI CORPORATION

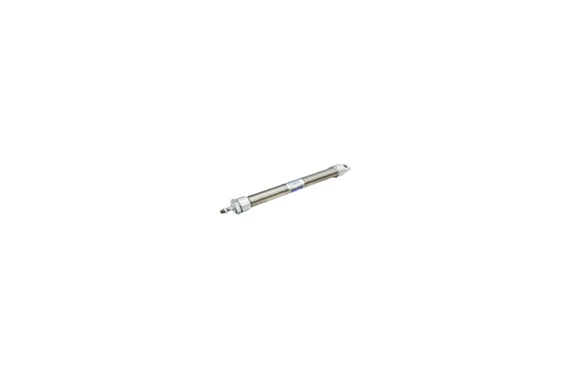

Koganei Slim Cylinders Double Acting Type Double Acting Type (Long Life)
Manufacturer: KOGANEI CORPORATION
Features
Maximize industrial efficiency with high-performance pneumatic solutions, featuring advanced micro mist filters and precision regulators designed for superior air quality. Our silicone-free components achieve cleanliness levels equivalent to JIS ISO Class 5 and utilize specialized particle pocket structures to ensure exceptionally low dust emissions. Experience stable pressure control with 0.001 MPa sensitivity and softened shock absorption through innovative linear orifice technology. From long-life cylinders with improved durability to one-touch maintenance filters, our robust die-cast products reduce resource usage and waste while contributing to energy savings.
Specifications
| Cylinder bore | 20 [0.787] · 25 [0.984] · 32 [1.260] · 40 [1.575] | |
|---|---|---|
| Operation type | Double acting type | |
| Media | Air | |
| Mounting type | Basic type, Foot type, Flange type, Pivot type, Head trunnion type, Rod trunnion type | |
| Operating pressure range | MPa [psi.] | 0.04 ~ 0.9 [6 ~ 131] |
| Proof pressure | MPa [psi.] | 1.32 [191] |
| Operating temperature range | °C [°F] | 0 ~ 70 [32 ~ 158] |
| Operating speed range | mm/s [in./sec.] | 30 ~ 800 [1.2 ~ 31.5] |
| Cushion | Fixed type (Rubber bumper) | |
| Lubrication | Not required | |
| Port size | Rc | 1/8 |
