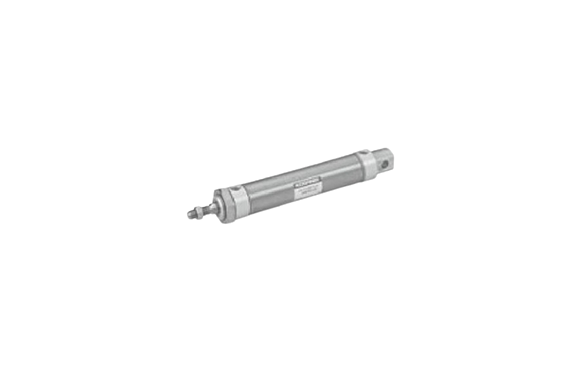

Koganei Slim Low Speed Cylinders
Manufacturer: KOGANEI CORPORATION
Features
Use durable piston seals.
The two piston seals are the durable PPY type. This prevents inner air leakage, and achieves smooth operation from low-speed to high-speed ranges.
Sensor switches can be installed anytime after cylinder installation.
Magnets as standard equipment across the entire series allow sensor switches to be installed anytime after the cylinder has been installed.
High installation accuracy and simple mounting operations.
A centering location on the rod cover improves mounting precision. Moreover, the mounting nut’s improved thread precision means that holding the cylinder body in place by hand is sufficient for mounting nut tightening operations. Mounting in hard-to-reach places is easy.
Specifications
| Item | Bore size mm [in.] | ||||
|---|---|---|---|---|---|
| 20, 25, 32, 40 [0.787, 0.984, 1.260, 1.575] | 50, 63 [1.969, 2.480] | ||||
| Operation type | Double acting type | ||||
| Media | Air | ||||
| Mounting type | Basic type, Foot type, Flange type, Pivot type | ||||
| Operating pressure range MPa [psi.] | 0.06～0.9 [9～131] | 0.05～0.7 [7～102] | |||
| Proof pressure MPa [psi.] | 1.32 [191] | ||||
| Operating temperature range °C [°F] | 0～60 [32～140] | ||||
| Operating speed range mm/s [in./sec.] | 10～500 [0.4～19.7] | 10～300 [0.4～11.8] | |||
| Cushion | Fixed type (Rubber bumper) | ||||
| Lubrication | Not required | ||||
| Port size | Rc 1/8 | Rc 1/4 | |||
