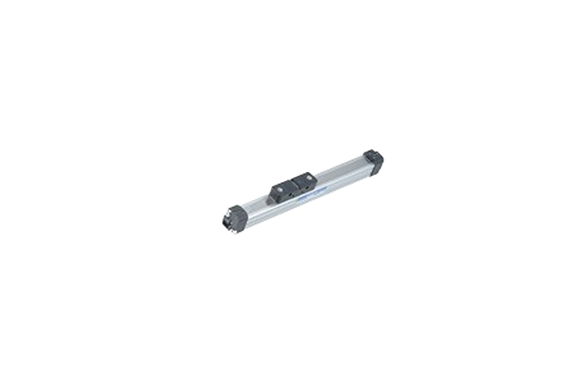

Koganei Slit Type Rodless Cylinders φ10 ORC 10
Manufacturer: KOGANEI CORPORATION
Features
The smallest slit barrel type with seal band in the series
Offers directly applying loads, non-rotating, and long strokes in hard-to-reach places not covered under conventional small-bore cylinders.
Compact sensor switch strongly supports the space savings of the ultra-slender body.
Specifications
| Item | Bore mm [in.] 10 [0.394] |
|---|---|
| Operation type | Double acting type |
| Media | Air |
| Operating pressure range MPa [psi.] | 0.2～0.7 [29～102] |
| Proof pressure MPa [psi.] | 1.03 [149] |
| Operating temperature range °C [°F] | 0～60 [32～140] |
| Operating speed range mm/s [in./sec.] | 100～500 [3.9～19.7] |
| Cushion | Rubber bumper |
| Lubrication | Not required |
| Maximum stroke mm [in.] | 2000 [78.74] |
| Stroke tolerance mm [in.] 1000 [39.37] or less | +5 [+0.197] 0 |
| Stroke tolerance mm [in.] 1001～2000 [39.41～78.74] | +6 [+0.236] 0 |
| Port size | M5 × 0.8 |
