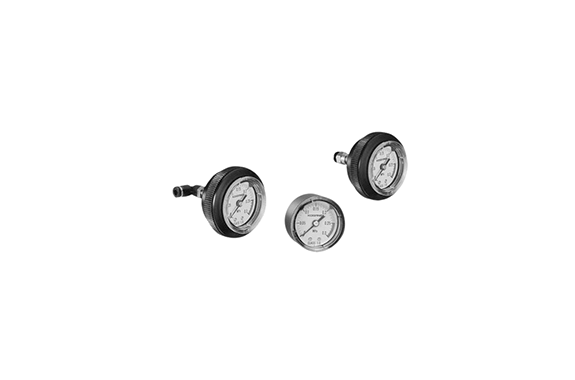

Koganei Small Precision Pressure Gauges G3P-40, GP3P-40
Manufacturer: KOGANEI CORPORATION
Features
This compact unit guarantees full-scale pressure indication accuracy of ±1%, ensuring highly reliable and precise measurements. Additionally, it is versatile and can be easily used as a panel mounting pressure gauge, adapting to different installation needs. Moreover, it offers a remarkable mechanical operating life of 200,000 full-scale operations. With the built-in throttle valve, it further enhances durability by maintaining consistent and reliable performance over time.
Specifications
| Item | Model | G3P-40 | GP3P-40 |
|---|---|---|---|
| Media | Air | ||
| Operation type | Bourdon tube | ||
| Port size | R1/4 (M5 × 0.8) | R1/4 (M5 × 0.8) | |
| Pressure indication range | MPa [psi] | 0～0.3 [0～44] | 0～0.25 [0～36] |
| Maximum operating pressure | MPa [psi] | 0.25 [36] | 0.25 [36] |
| Operating temperature range | °C [°F] | –5～60 [23～140] | –5～60 [23～140] |
| Pressure indication accuracy | F.S.±1% (0.003MPa [0.44psi]) | F.S.±1% (0.003MPa [0.44psi]) | |
| Minimum measurement unit | 0.005MPa [0.7psi] | 0.005MPa [0.7psi] | |
| Guaranteed temperature accuracy range | °C [°F] | 25±5°C [77±9°F] | 25±5°C [77±9°F] |
| Temperature coefficient | 0.05% F.S./°C | 0.05% F.S./°C | |
